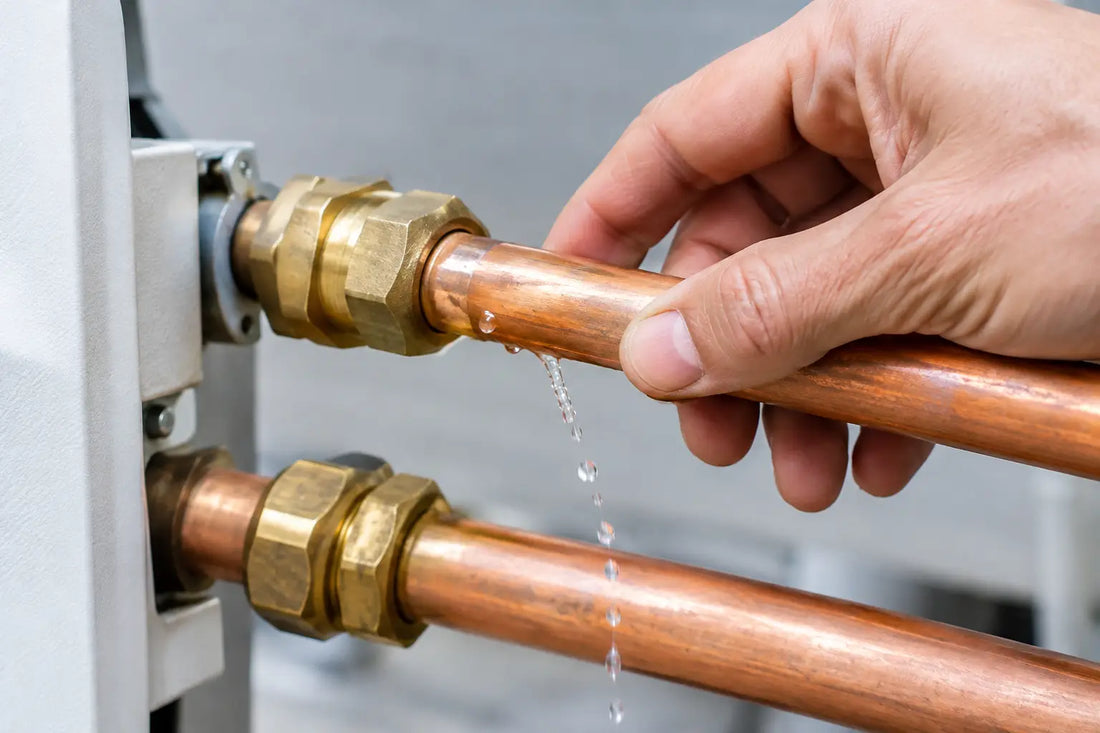

Flare Leak Causes in HVAC Copper Pipework

A flare that holds during installation but loses charge weeks later is rarely a mystery fault. It is usually a preparation, alignment or tightening problem that was built into the joint before commissioning. For technicians chasing flare leak causes, the fastest path is to inspect the sealing surfaces and the installation process rather than simply tightening the nut again.

Flared connections remain common on split systems and refrigeration equipment because they are practical, serviceable and fast to install. They are also unforgiving. Copper tube, flare geometry, nut condition, mating face alignment and torque all need to work together. A professional-looking flare is not always a sealing flare.

The flare leak causes that matter most

Poor tube cutting and deburring

A clean, square cut is the starting point. Tube cut with a blunt cutter wheel, excessive feed pressure or several unnecessary rotations can develop a distorted edge. If that edge enters the flaring cone unevenly, the finished flare may be thin on one side or carry a small split around the lip.

Internal burrs are just as problematic. They can interfere with flare formation, create turbulence in smaller lines and allow copper fragments to enter the system. Ream the tube carefully with the open end facing down so material falls out rather than into the line. Do not over-ream the wall and leave a knife-edge flare.

A quality tube cutter and deburring tool are not optional extras on high-value installs. They make the first step repeatable, especially when working with thin-wall annealed copper.

Incorrect flare dimensions

The flare must have the right projection from the flaring bar, the correct diameter and a consistent 45-degree sealing surface. Too little tube protrusion produces an undersized flare that may not fully seat against the male fitting. Too much protrusion can create an oversized, thin flare that bottoms out or cracks under torque.

Different flaring blocks and eccentric or clutch-style flaring tools have their own setup requirements. Follow the tool's gauge or stop position rather than relying on an estimate. When a job involves multiple pipe sizes, check each size before starting production work. A setting that works on 1/4 inch tube is not automatically right for 1/2 inch tube.

Inspect the face under good light. The surface should be smooth and even, with no folds, score marks, chips or radial cracks. A flare that shows obvious tooling marks may still pass a quick pressure test, but it is a poor risk on a system that will see vibration and wide temperature swings.

Off-centre flaring and misalignment

The tube needs to sit squarely in the flaring block. If it is clamped at an angle or slips while forming, one side of the flare stretches more than the other. That creates uneven wall thickness and an inconsistent contact pattern at the fitting.

Misalignment can also occur after the flare is made. Copper lines forced into position place side load on the connection. The nut may thread on, but the flare does not meet the fitting face squarely. Tightening a misaligned joint harder does not correct the geometry. It can deform the flare, damage the seat and make a later repair more difficult.

Bend and position the pipework before final connection. Use the correct tube bender and leave enough straight length at the end to make and tighten the flare without fighting the line set. If the flare nut will not start smoothly by hand, stop and realign it.

Damaged flare nuts or fitting faces

A new flare cannot seal against a damaged mating surface. Nicks, corrosion, embedded debris and over-tightening marks on the male flare seat are common sources of recurring leaks. So are flare nuts with worn threads, distorted bearing faces or damaged internal shoulders.

Before assembly, wipe both sealing faces clean and inspect them. Do not drag copper tube across a dirty roof, condenser base or workshop floor, then expect the joint to seal perfectly. A small grain of grit between the flare and seat can create a leak path once the system cycles.

Reuse of flare nuts depends on condition and the manufacturer’s requirements. On critical work, or where a nut has been previously over-tightened, replacement is inexpensive insurance. Use the supplied nuts where equipment manufacturers specify them, particularly on higher-pressure equipment.

Incorrect torque

Under-tightening leaves insufficient contact pressure between the flare and fitting. The connection may leak immediately under nitrogen, or it may hold until thermal movement and vibration reduce the seal.

Over-tightening is just as common and often more costly. Excess torque can crush the flare, stretch the copper, distort the fitting seat or create a crack at the flare edge. A larger spanner does not make a better connection.

Use a calibrated torque wrench with a backup spanner on the valve body or fitting. Apply the equipment manufacturer’s specified torque for that tube size and connection. Generic torque charts can be useful where appropriate, but the unit documentation takes priority. This matters even more on R32 and other high-pressure applications, where a marginal flare is less likely to remain marginal for long.

Why tightening a leaking flare is rarely the fix

When a joint bubbles during a pressure test, the temptation is to pull the wrench tighter. That can work only if the flare and seat are sound and the original torque was genuinely low. In the field, it is often impossible to know that with confidence.

If a flare has leaked, recover refrigerant where required, depressurise the circuit safely, disconnect the joint and inspect it properly. Look for a polished line that shows the contact area, a split around the flare, a damaged seat or evidence that the tube was side-loaded. In many cases, cutting back the tube and producing a fresh flare is the faster, more reliable repair.

The trade-off is available pipe length. On short line sets or cramped condenser connections, repeated re-flares can leave insufficient straight tube for a proper remake. Plan the repair before cutting. A suitable coupling or section replacement may be the professional option rather than trying to save a compromised end.

A process that prevents repeat call-backs

Reliable flares come from a controlled sequence. Cut the tube square, deburr it, fit the nut before flaring, then form the flare with a tool suited to the tube size and material. Inspect the finished face before bringing it to the fitting.

Keep the line naturally aligned, start the nut by hand and tighten with the specified torque. Avoid lubricants unless the equipment manufacturer specifically permits them. Some technicians use approved refrigerant oil sparingly on the back of the flare or nut threads where specified, but oil on the sealing face can attract contamination and mask poor workmanship. Manufacturer instructions should decide the method.

After assembly, pressure test with dry nitrogen at the specified test pressure and use an appropriate leak detection method at every flare. Never use oxygen or compressed air for pressure testing refrigeration systems. Once the test is satisfactory, evacuate with a properly sized vacuum pump and verify dehydration with an accurate micron gauge. A pressure test proves mechanical integrity; evacuation confirms that the system is ready for charging.

Tool condition affects the joint

Even skilled hands cannot consistently compensate for worn tooling. A flaring cone with scoring, a slipping clamp, damaged tube cutter wheel or inaccurate torque wrench introduces variation where the job needs control. Check tools before a run of installations, not after a leak has already cost time and refrigerant.

Cordless flaring tools can improve consistency and speed for repetitive work, provided the correct dies, tube preparation and setup are used. Manual tools remain effective when they are maintained and operated carefully. The right choice depends on job volume, access and the pipe sizes you handle most often, but precision is the non-negotiable requirement.

AC Direct supplies professional flaring, cutting, bending and commissioning equipment built around that standard: repeatable preparation, accurate assembly and fewer reasons to return to site.

A flare connection should be treated as a critical seal, not a quick final step. Take the extra minute to inspect the copper, align the pipework and torque the joint correctly. It is far cheaper than returning to find a system short of charge and a customer short on patience.
