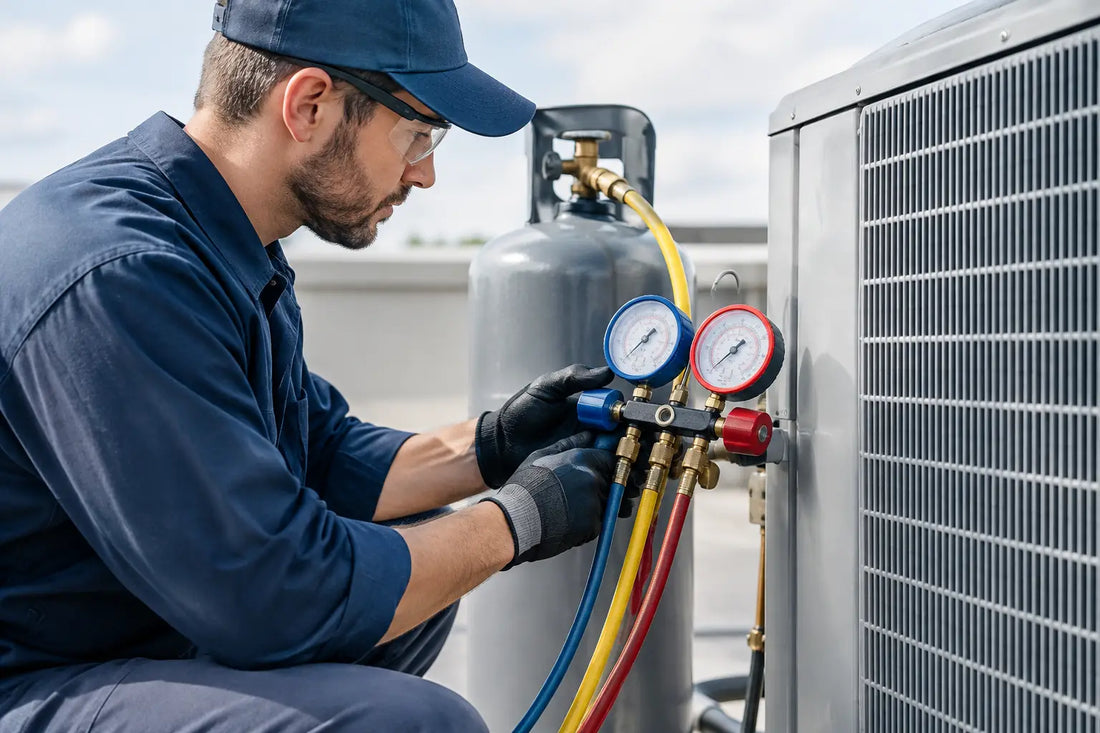

Nitrogen Pressure Testing Guide for HVAC Techs

A nitrogen pressure test is where a clean installation proves itself before evacuation and charging. This nitrogen pressure testing guide is built for techs who need to find leaks early, protect expensive components and hand over systems that hold pressure for the right reasons - not because a gauge happened to look steady for five minutes.

Pressure testing is not a box-ticking exercise between brazing and vacuum. It is the point where copper preparation, flare quality, brazed joints, valve cores and isolation practices are all put under load. A disciplined test saves return visits, refrigerant loss and awkward conversations after commissioning.

Why dry nitrogen is the right test medium

Use dry nitrogen for pressure testing refrigeration and air-conditioning pipework. It is inert, dry and readily available for trade work. Unlike compressed air or oxygen, it does not introduce moisture or create a combustion risk around oil-contaminated equipment.

Never use oxygen, compressed air or an oxygen-containing gas to pressure test a refrigeration system. Oil and oxygen under pressure are a dangerous combination. Refrigerant is also not a leak-testing medium. Apart from the cost, releasing refrigerant breaches good environmental practice and can create compliance issues.

Nitrogen does not locate the leak for you. It provides a controlled pressure differential so leaks become visible through pressure loss, bubble solution or electronic detection methods where suitable. The quality of the result depends on the test method, the instruments and the time allowed for temperature stabilisation.

Equipment for a controlled pressure test

A professional test setup needs more than a cylinder and a set of gauges. At minimum, have the right equipment on site before opening the nitrogen bottle:

• A dry nitrogen cylinder secured upright and fitted with an approved pressure regulator
• A manifold or digital gauge set rated for the intended test pressure and refrigerant class
• Hoses, adapters and core tools in sound condition, with low-loss fittings where practical
• An approved leak-detection solution, clean brush or applicator, and calibrated electronic leak detector
• Correct PPE, including eye protection and gloves, plus a reliable way to record ambient conditions and test pressure

A good regulator matters. A cylinder can hold very high pressure, while the system only needs a controlled, manufacturer-approved test pressure. Do not attempt to manage cylinder pressure by cracking the valve and hoping the manifold will control it. The regulator is the control point.

Before connecting, inspect hoses and manifold seals. A leaking hose connection can waste half an hour and send you looking for a fault that is not in the system. Where a pressure decay result looks suspicious, isolate the test assembly from the pipework or check the manifold setup independently before cutting into a finished joint.

Confirm the system limit before adding pressure

There is no single nitrogen test pressure that suits every split system, VRF installation, condensing unit or refrigeration circuit. The correct pressure depends on the equipment manufacturer’s instructions, refrigerant type, component ratings, pipework design and the section being tested.

Check the nameplate and installation manual. Pay particular attention to the maximum allowable pressure of indoor coils, service valves, branch joints, hoses and temporary test gear. If you are testing only field pipework before connecting it to equipment, the allowable pressure may differ from a complete-system test. It depends on what remains connected.

This is especially relevant with modern higher-pressure refrigerants and equipment. The pressure rating of an older analogue manifold, damaged hose or bargain adapter may be the weakest point in an otherwise sound setup. Professional installations are completed with professional-grade tools because the tool rating is part of the safety margin.

Nitrogen pressure testing procedure

1. Prepare and isolate the circuit

Finish all pipework, flares and brazed joints before starting. Confirm service valves are in the correct position for the section you intend to test. Keep the nitrogen cylinder upright and restrained against movement. Make sure people are clear of exposed connections and never stand directly in front of a fitting while pressurising.

If brazing was completed recently, allow the work to cool naturally. Testing hot pipework is inaccurate and can mask a leak as the copper and nitrogen cool down. It can also put unnecessary stress on components.

2. Connect, purge and raise pressure gradually

Connect the regulator to the nitrogen cylinder, then connect the hose and gauge set to the test point. Crack the nitrogen flow briefly to purge air from the hose where appropriate, then connect fully. This reduces the amount of atmospheric moisture introduced into the circuit.

Raise pressure gradually, pausing at a lower pressure to listen for a major leak and inspect obvious joints. If a flare has been cross-threaded, a valve core is missing or a brazed connection has failed, finding it at a modest pressure is safer and faster than discovering it at the final test level.

Continue in stages until the manufacturer-specified test pressure is reached. Shut off the regulator and isolate the nitrogen supply once the circuit is at test pressure. Record the pressure, time and ambient temperature.

3. Allow the pressure to stabilise

This is where rushed testing causes false failures. Nitrogen pressure changes with temperature. A pipe set sitting in direct sun, near a hot roof cavity or beside a running condenser can show pressure movement even when it is perfectly sealed.

Allow the system to stabilise before judging pressure loss. The required hold time should follow the manufacturer’s guidance and job requirements. On larger systems, long pipe runs and multi-zone installations, more time gives a more meaningful result. Compare any pressure change against the temperature change recorded during the hold period rather than relying on one gauge reading alone.

A small shift after charging may be thermal. A continuing fall after stabilisation is a leak until proven otherwise.

4. Locate leaks methodically

Start with the points most likely to leak: flare faces, flare nuts, service ports, Schrader cores, brazed joints, branch connections, indoor-unit stubs and access valves. Apply approved bubble solution to each suspect connection. A growing bubble is evidence. Wiping it away and seeing it reform confirms the location.

Electronic leak detection can be useful, but treat it as a supporting method and use it according to the detector manufacturer’s instructions. Air movement, cleaning chemicals and contamination can affect results. For a clear visible confirmation on accessible joints, bubble solution remains one of the most dependable field checks.

Do not tighten a flare aggressively in an attempt to stop a leak. Over-tightening can damage the flare face, distort the fitting or create a leak that appears later under operating conditions. Recover the pressure safely, remake the flare or joint correctly, then test again.

5. Repair, retest and document the result

Every repair requires a full retest. Do not assume one repaired joint was the only issue, particularly where poor tube preparation or rushed brazing has occurred across several connections. Return the circuit to the specified test pressure, stabilise it and complete the hold period again.

Record the final pressure, hold time, ambient conditions and any repairs made. For commercial work, this record supports commissioning paperwork and gives the service team a useful baseline. For residential work, it demonstrates that commissioning was carried out with more care than simply opening service valves and hoping for the best.

Common results that lead to false calls

A dropping gauge does not always mean a pipework leak. Temperature reduction, a loose manifold hose, a leaking regulator connection, a faulty gauge or a valve not fully seated can all produce a similar result. The quickest diagnostic move is often to separate the test gear from the circuit and identify which side is losing pressure.

The reverse is also true. A gauge holding pressure does not guarantee every connection has been inspected. Very small leaks may need more time, better access or localised leak detection. On concealed pipework, test thoroughly before closing walls or ceiling spaces. The cost of extra testing time is minor compared with reopening finished work.

Another common mistake is testing through components that should have been isolated. Solenoid valves, electronic expansion valves and other restrictions can prevent the test pressure reaching every part of the circuit. Know the refrigerant path and confirm the entire intended section is genuinely under test.

From pressure test to evacuation

Once the pressure test is complete, vent nitrogen safely in accordance with site requirements and local procedures. Do not leave a charged test circuit unattended or assume it is ready for refrigerant simply because it held pressure.

The next step is evacuation with a correctly sized, dual-stage vacuum pump and a dependable micron gauge. Nitrogen testing identifies leaks. Evacuation removes non-condensables and moisture. They are separate jobs, and doing one well does not replace the other.

For installers who want repeatable commissioning results, the practical standard is simple: control the test pressure, allow for temperature, inspect every critical joint and retest after every repair. That discipline protects the system, the customer and the reputation attached to the job.
