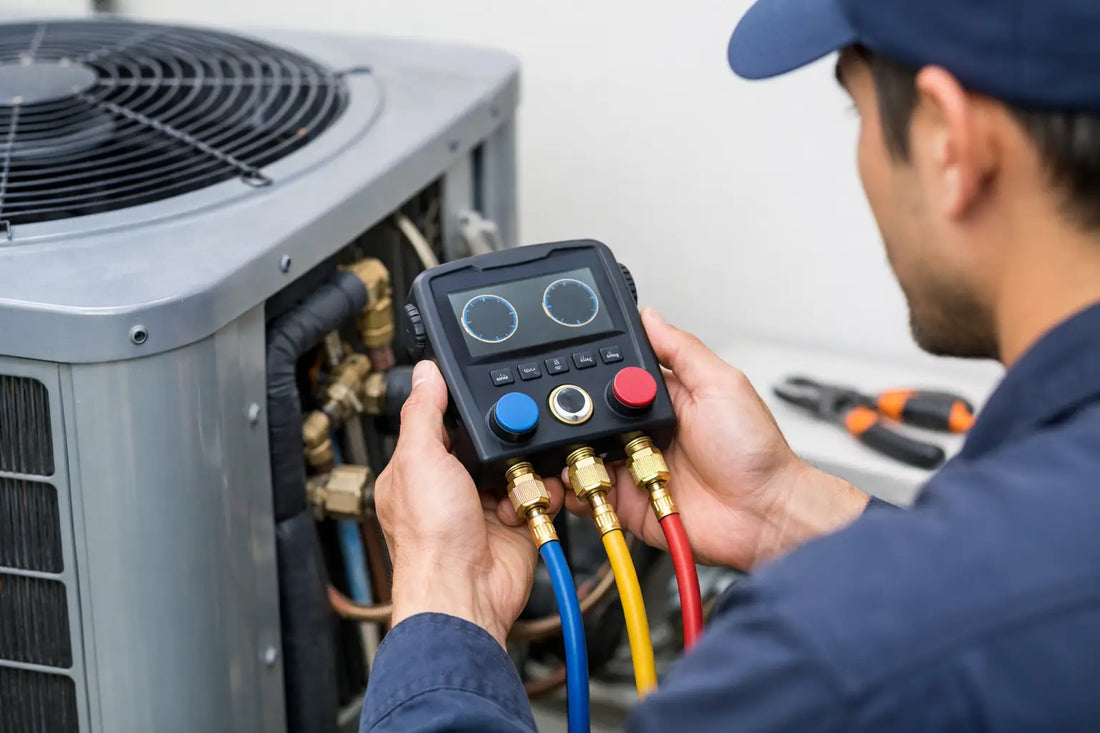

Digital Manifold Gauges for HVAC Service

A manifold that is slow to stabilise, difficult to read in bright sun or limited to yesterday’s refrigerants costs time on every callout. Digital manifold gauges for HVAC give technicians a clearer view of system pressure, saturation temperature, superheat, subcooling and evacuation performance - provided the gauge matches the work being done.

For installation crews, service technicians and refrigeration mechanics, the right digital manifold is not about adding another screen to the tool bag. It is about reducing calculation errors, recording readings with confidence and making faster decisions at the outdoor unit, in a plant room or on a rooftop.

What a Digital Manifold Changes on the Job

A traditional analogue manifold can still handle basic pressure readings, but it relies on the technician to cross-reference a pressure-temperature chart and calculate system conditions manually. A quality digital unit puts refrigerant data, pressure readings and calculated values in one place.

That matters when commissioning a split system, diagnosing poor capacity, checking a TX valve, verifying charge, or confirming whether a system has been properly evacuated. Instead of moving between gauges, charts and a separate temperature instrument, the technician can work from live measurements and calculated values on the same display.

Digital manifolds also make repeatable service work easier across a crew. When every technician is working from the same refrigerant selection, temperature scale and pressure information, job records are more consistent. This is particularly useful for contractors servicing multiple sites or maintaining equipment under a planned maintenance schedule.

The trade-off is simple: a digital manifold has more functions, so it needs to be selected and maintained properly. Battery condition, sensor accuracy, hose condition and refrigerant compatibility all matter. A cheap unit with limited support or questionable accuracy can create more uncertainty than it removes.

Choosing Digital Manifold Gauges for HVAC Work

Start with the systems your business services most often. Refrigerant coverage is a primary buying decision. A multi-refrigerant digital manifold should support the refrigerants common across your residential, light commercial and refrigeration work, including current refrigerants and the equipment already installed in your service area.

Do not choose solely on the size of the refrigerant list. Check that the gauge supports the refrigerants you genuinely encounter, then consider how easily the technician can select and confirm the active refrigerant before taking readings. Selecting the wrong refrigerant can make saturation temperature, superheat and subcooling figures useless.

Pressure range is the next practical check. The manifold must suit the operating pressures of the systems being serviced, including higher-pressure refrigerants. Look for a clear working pressure specification and a suitable burst rating. Hoses, couplers and adaptors must be rated appropriately as well. The gauge is only one part of the pressure-handling setup.

Display readability and control layout

A backlit display earns its place quickly when work runs into the afternoon or takes place in poorly lit plant areas. Large digits, a clear high-side and low-side layout, and a display that can be read without cycling through unnecessary menus all make a difference in the field.

Controls should be usable with gloves on. A manifold that requires repeated button presses to change refrigerant, view temperature inputs or switch units slows down routine checks. Straightforward controls are generally more valuable than an overloaded feature list.

Temperature inputs and calculated values

Pressure alone does not tell the whole story. For charging and diagnosis, digital manifolds are most useful when paired with reliable clamp probes or compatible temperature probes. This allows the gauge to calculate superheat and subcooling from live line temperatures and refrigerant saturation values.

That calculation is only as good as the inputs. Clamp placement, pipe contact and insulation from ambient air all affect readings. On a hot condenser or a roof exposed to sun, take the time to position temperature clamps correctly. A precise manifold cannot compensate for a poorly placed probe.

Vacuum measurement capability

Some digital manifold sets include vacuum measurement or can connect to a dedicated micron gauge. This can streamline evacuation work, but technicians should understand the limitation: a stable pressure reading on the manifold is not always proof of a deep, clean evacuation.

For critical commissioning work, a dedicated micron gauge placed correctly in the system remains the stronger approach. It gives a more meaningful view of evacuation performance and decay testing, especially when the vacuum pump is isolated. If a manifold includes vacuum functions, treat them as useful workflow support rather than a reason to skip proper evacuation procedure.

Accuracy Is More Than a Specification

Digital accuracy figures can look impressive on a product page, but field accuracy depends on the entire setup. Damaged seals, contaminated hoses, loose fittings and a manifold that has not been checked can all affect the result.

Protect the gauge in transport and avoid leaving it exposed to excessive heat, rain or direct impact in the ute. Keep ports capped when not in use, inspect hoses before charging or recovery work, and replace worn seals before they become a leak point. These simple habits protect both the tool and the system being serviced.

It is also worth checking readings against a known reference or a workshop standard at regular intervals. For businesses with several technicians, a basic verification process helps identify a gauge that is drifting before it affects commissioning results across multiple jobs.

Features That Earn Their Keep

The best features are the ones that reduce steps during real service work. Wireless connectivity can be worthwhile if it allows readings to be viewed away from the condensing unit, logged to a job record or shared with another technician. It is less valuable if it depends on a mobile app that is slow to connect or difficult to use on site.

Integrated data logging can help on difficult faults, particularly intermittent issues where pressures and temperatures need to be tracked over time. For routine residential maintenance, however, a clear screen and reliable calculated values may be all that is needed. Buy for the work your team performs every week, not the one specialist job that appears twice a year.

Some technicians prefer an all-in-one manifold with probes and charging functions built around one platform. Others prefer a simpler digital manifold combined with separate wireless probes, a dedicated micron gauge and charging scale. Neither approach is automatically better. An all-in-one setup keeps the kit compact, while separate instruments offer flexibility and easier replacement if one component is damaged.

Build the Gauge Kit Around the Full Workflow

A manifold does not work in isolation. Good evacuation and charging outcomes rely on the full tool chain: a dual-stage vacuum pump with suitable performance, vacuum-rated hoses, a micron gauge, refrigerant scale, temperature clamps and reliable service valves or adaptors.

For new installations, the sequence matters. Pressure test, rectify leaks, evacuate properly, confirm vacuum performance, charge or release refrigerant according to the manufacturer’s requirements, then verify operating conditions. Digital gauges make the measuring and verification stages quicker, but they do not replace correct pipework preparation, flaring, torque practices or leak testing.

This is why professional-grade tools pay back across the installation. A quality flaring tool helps prevent connection leaks. Proper tube cutting and deburring protect the system from restrictions and contamination. Accurate digital readings then give the technician confidence that the completed system is operating as intended.

Buy for the Jobs You Want to Complete Faster

For a technician handling varied split-system, commercial and refrigeration calls, a multi-refrigerant digital manifold with dependable pressure sensors, temperature inputs and a durable case is a practical investment. For a contractor focused on installations, prioritise clear charging data, probe compatibility and a setup that works efficiently alongside a dedicated micron gauge.

AC Direct focuses on the tools that support professional installations and service outcomes, from precision gauge work through to evacuation and copper-line preparation. Choose a manifold that fits your refrigerant range, workflow and service standard, then maintain it like the diagnostic instrument it is. The right readings are only useful when you can rely on them at the point of decision.
