How to Flare Copper Pipe Correctly for HVAC
Share
A flare joint can look finished and still fail under pressure. A split lip, off-centre cone or overtightened nut may not show up until the system is evacuated, charged and running. Knowing how to flare copper pipe properly gives you a clean mechanical seal at the service valve, indoor unit or refrigeration component - and avoids a return visit for a leak that should never have happened.
For HVAC and refrigeration work, use refrigeration-grade annealed copper tube, a matched flare block and cone, and a torque wrench suited to the fitting. The goal is not simply to make the tube end wider. It is to create a smooth, even 45-degree flare that seats squarely against the matching fitting.
Tools needed to flare copper pipe

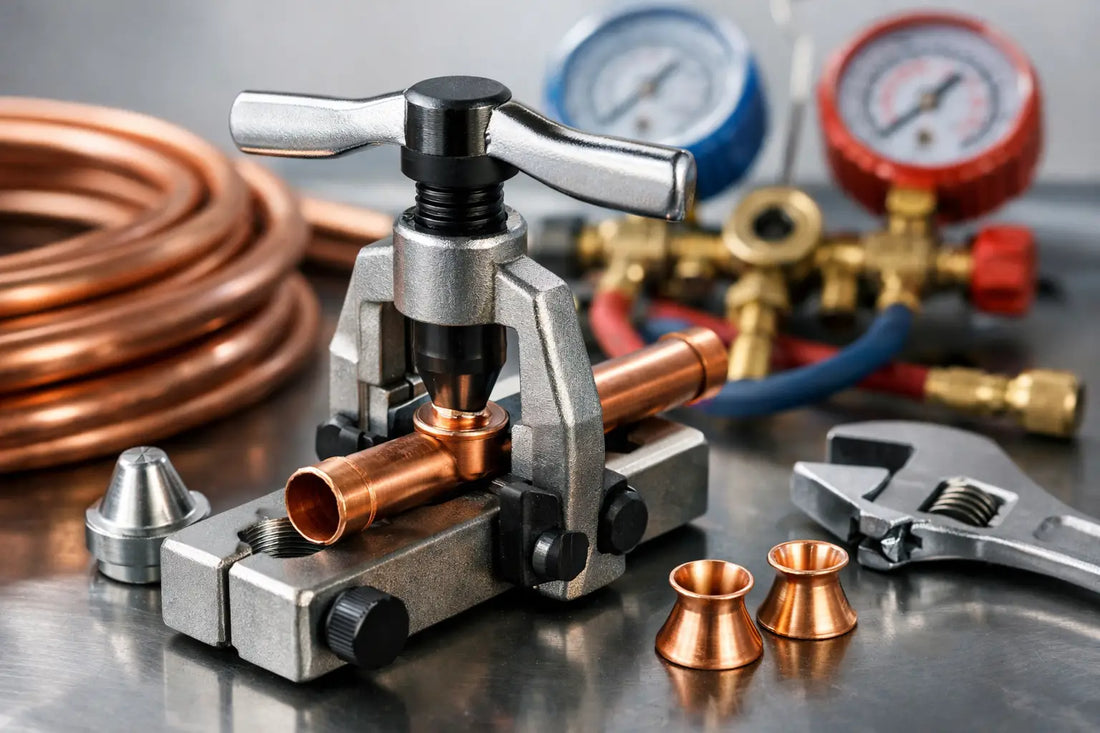

A professional result starts with the right preparation tools. At minimum, you need a tube cutter, internal and external deburring tool, flaring tool with the correct tube-size holes, and the correct flare nuts. A tube reamer, vernier callipers and flare gauge are also useful for repeatable work.
For field installations, an eccentric cone flaring tool is usually the practical choice. Its rolling action reduces friction as it forms the flare, helping produce a more consistent face than basic fixed-cone blocks. Cordless flaring tools can speed up repetitive line-set work, but they still rely on correctly cut, deburred and clamped tubing.
Do not use a plumbing flare tool unless it is rated for refrigeration tube and the required 45-degree HVAC flare profile. The tube dimensions, forming method and joint requirements need to match the system and fitting manufacturer’s specifications.
How to flare copper pipe step by step
1. Measure, cut and keep the tube square
Measure the line length before cutting, allowing enough tube for routing, bends and connection access. Place the copper tube in a quality tube cutter and tighten the cutting wheel only until it contacts the tube. Rotate the cutter around the tube, tightening in small increments after each pass.
Avoid forcing the cutter down quickly. Excess pressure can deform the tube end, create a heavy internal burr and make the flare harder to form evenly. A square cut is essential because an angled tube end creates an uneven flare face that will not seat correctly.
Once cut, inspect the end. If the tube is visibly oval, crushed or deeply marked, cut it back and start again. Saving 20 mm of copper is not worth compromising the connection.
2. Slide the flare nut on before forming the flare
Put the flare nut onto the tube with the threaded end facing the connection. This is a simple step, but it is one of the most common preventable errors on installation work. Once the flare is formed, the nut cannot be fitted without cutting the end off and starting again.
Check that the nut matches the tube size and the unit connection. Do not mix visibly similar fittings from different applications without confirming their thread and flare compatibility.
3. Deburr the inside and outside of the copper
Remove the burr from the internal edge using a reamer or deburring tool. Hold the tube pointing downward while reaming so copper filings fall out rather than travelling into the line. Then lightly remove any sharp edge from the outside.
The aim is a clean edge, not a heavily chamfered one. Over-reaming thins the lip and can leave too little material to form a durable flare. Wipe the end clean after deburring. Any swarf left in a refrigeration line can contaminate components and restrict metering devices.
4. Clamp the tube at the correct height
Fit the copper tube into the flaring bar’s correctly sized opening. Set the tube projection according to the tool instructions or its built-in height gauge. This detail controls the flare diameter and material thickness at the face.
Too little tube above the block can produce a small flare that does not fully contact the fitting. Too much projection can create a thin, stretched edge that cracks when tightened. Clamp the bar firmly enough to stop the tube slipping, but do not crush or mark the copper.
If your flaring tool includes an indexed depth stop, use it. Repeatable tube height is one of the biggest advantages of professional flaring equipment, particularly when completing multiple connections on a split-system install.
5. Form the 45-degree flare smoothly
Centre the flaring cone over the tube and bring it down gradually. With a manual eccentric tool, turn the handle steadily until the clutch releases or the tool reaches its set stop. Do not continue winding after the flare is fully formed. Over-forming can thin the copper and damage the flare face.
Remove the cone and release the tube from the bar. The finished flare should be symmetrical, smooth and centred on the tube. Its face should be flat around the full circumference, with no scoring, cracks, folds or ragged edge.
A quality flare has a consistent wall thickness. If one side looks visibly thinner than the other, the tube was likely cut unevenly, clamped off-centre or projected at the wrong height. Cut it off and remake it.
6. Inspect before making the connection
Run a finger carefully around the flare edge and inspect it under good light. Look for hairline cracking, especially on larger tube sizes or harder copper. Check that the flare has not been dragged or scratched by the cone.
A flare gauge can confirm that the outer diameter and seating profile are within the expected range. It is particularly worthwhile when training apprentices, using a new flaring tool or working on high-pressure equipment where the margin for error is smaller.
Do not attempt to rescue a damaged flare by filing it smooth. Filing changes the mating surface and may hide the defect rather than correct it. Cut back to sound copper, fit a new nut if needed, and remake the connection.
Making up the flare joint without damaging it
A good flare can still leak if the joint is assembled poorly. Align the tube with the fitting before starting the nut by hand. The tube should enter naturally, without side load from a tight bend or poorly supported line set. If the nut will not thread smoothly by hand, stop and correct the alignment. Forcing it can cross-thread the fitting or distort the flare.
Use flare oil only where the equipment manufacturer specifies it. When permitted, apply a very light film to the back of the flare and nut threads, not the flare sealing face. Too much oil attracts dirt and can interfere with the joint.
Tighten using a holding spanner on the valve body and a torque wrench on the flare nut. Follow the manufacturer’s torque specification for the exact tube diameter, refrigerant and equipment. Tightening by feel is inconsistent, especially across different fitting sizes and alloys. Under-torque can leak; over-torque can crack the flare or damage the mating seat.
After assembly, pressure-test with dry nitrogen in line with site procedure and the equipment instructions. Then evacuate the system with a suitable vacuum pump and verify decay using reliable gauges or a micron gauge. A clean pressure test and stable evacuation are the practical proof that the flare work is sound.
Common flare faults and what causes them
Most failed flare joints trace back to one of a few workshop habits:
- Cracked flare edge: Usually caused by over-forming, hard copper, excessive tube projection or a dull, damaged cone.
- Uneven flare: Commonly caused by an angled cut, off-centre clamping or tube movement in the block.
- Small flare diameter: The tube was not projected far enough above the flaring bar.
- Scored sealing face: Caused by dirt, swarf, damaged tooling or forcing the cone.
- Leak after tightening: Often linked to incorrect torque, misalignment, an unsuitable flare nut or a damaged fitting seat.
When a flare joint is not the right choice
Flared connections are standard on many split-system and service-valve applications, but they are not universal. Some refrigeration piping requires brazed joints, while other equipment uses specific proprietary fittings. Always follow the unit manufacturer’s installation instructions, particularly for newer refrigerants and higher-pressure systems.
Where flares are required, use the tube, fittings and torque values specified for that equipment. The right tool setup takes only a few extra moments at the ute or on site, but a correctly formed flare gives the system its best chance of passing pressure test, holding vacuum and staying leak-free after commissioning.
