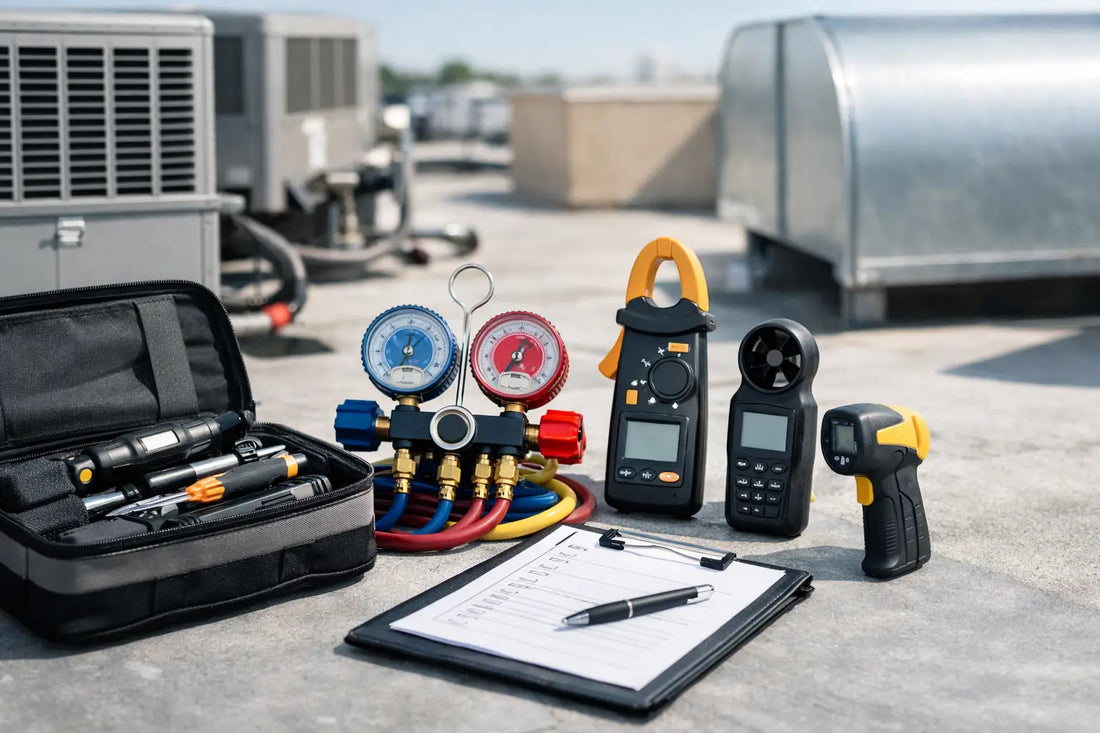

HVAC Commissioning Tools Checklist for Techs

A system can look finished, pressure-test clean and still fail at handover if commissioning is rushed. This HVAC commissioning tools checklist is built for the work that proves an installation is clean, tight, correctly charged and operating as designed - not just switched on.

Commissioning tools need to do two jobs well: provide trustworthy measurements and help you work efficiently between residential splits, multi-head systems, ducted units and light commercial refrigeration equipment. The right kit depends on the equipment, refrigerant and manufacturer procedure, but the essentials should already be in the ute before pipework is connected.

HVAC commissioning tools checklist

Start by separating tools used to prepare the refrigeration circuit from tools used to measure system performance. That keeps a critical step from being skipped because a tool is buried under general install gear.

For a professional commissioning kit, carry:

• A digital manifold gauge set rated for the refrigerants and working pressures you service.
• A dual-stage vacuum pump, vacuum-rated hoses and core removal tools.
• A digital micron gauge, kept clean and used at the system rather than relying on the pump reading.
• A regulated dry nitrogen cylinder, pressure regulator, charging hose and leak detection solution or electronic leak detector.
• Refrigerant scales, a charging hose with low-loss fittings, and the correct refrigerant supply where charging is required.
• Clamp temperature probes, a psychrometer or temperature and humidity meter, and an electrical meter with clamp function.

That is the core. Add equipment according to the job: a cordless flaring kit for flare connections, a torque wrench set for flare nuts, a tube cutter, reamer, copper benders and an expander for pipework preparation. A quality commissioning result starts before evacuation. Poorly cut, deburred or flared copper can turn a straightforward start-up into an intermittent leak call-back.

Gauge and charging equipment

A multi-refrigerant digital manifold is usually the most productive choice for field commissioning. It gives you saturation values, pressure readings and, on suitable models, calculated superheat and subcooling. It also reduces the risk of using an outdated pressure-temperature chart or applying the wrong refrigerant setting.

Choose gauges with compatible refrigerant coverage and pressure ratings for the systems in your workload. R32 and other higher-pressure refrigerants demand equipment specifically rated for the application. Do not make assumptions based on a similar-looking legacy gauge set.

Low-loss fittings are a small upgrade with a practical payoff. They reduce refrigerant release when disconnecting hoses and make final charging adjustments less wasteful. Pair the manifold with clean, dedicated hoses where possible. Hoses that have been left open in a dusty van or used across contaminated systems can compromise otherwise careful work.

A refrigerant scale is equally non-negotiable when a system requires a weighed charge. Charging by pressure alone can be misleading, particularly with variable-speed equipment, changing load conditions or systems that specify an additional charge by line length. Confirm the manufacturer’s charge procedure before adding or recovering refrigerant.

Vacuum and dehydration tools

A deep vacuum is not a box to tick after five minutes on the pump. It is evidence that air and moisture have been removed from the circuit. The vacuum pump, hoses, core tools and micron gauge work as one setup, and any weak link slows the process or hides a problem.

Use a correctly sized dual-stage vacuum pump with fresh, clear oil. If the oil looks cloudy, change it before the job rather than expecting it to pull properly later. Large pipe runs, multi-head systems and commercial equipment may need a higher-capacity pump, larger-diameter vacuum hoses or multiple connection points to achieve a practical evacuation time.

Remove Schrader cores during evacuation with core removal tools. This improves flow dramatically compared with pulling through a restrictive manifold hose. Where your procedure permits it, connect vacuum-rated hoses directly from the core tools to the pump, then place the micron gauge on the system side, away from the pump. That gives a more honest reading of what is happening inside the pipework.

A standing vacuum test is as valuable as the final micron figure. Isolate the system and watch the rise. A rapid increase can point to a leak, a core issue, trapped moisture or a poor connection in the evacuation setup. It depends on system size and ambient conditions, so follow the equipment manufacturer’s specified target and stabilisation time rather than applying one number to every job.

Pressure testing and leak detection

Nitrogen pressure testing should happen before evacuation, not after a charge has been added. Use dry nitrogen and a proper regulator so the test pressure can be raised in controlled stages without exceeding the manufacturer’s limits. Never use oxygen or compressed air for pressure testing refrigeration circuits.

A stable pressure test needs context. Record the starting pressure, ambient temperature and test duration. Temperature changes will move the gauge reading, especially when equipment is sitting in direct sun or a plant room cools down overnight. A pressure drop may be a leak, but it may also be temperature movement. Good commissioning records make the difference clear.

For leak location, use a compatible electronic leak detector alongside bubble solution at accessible joints, service ports, flare connections and valve stems. Electronic detection is fast around concealed or hard-to-reach joints; bubble solution gives visual confirmation at exposed connections. Neither replaces careful pipe preparation and correct torque during installation.

Temperature, airflow and electrical checks

Refrigerant pressures only tell part of the story. A unit may have the correct charge and still perform poorly because of restricted airflow, incorrect fan settings, a blocked filter, a control fault or an electrical supply issue.

Carry clamp probes for suction and liquid line temperatures, plus a reliable air temperature and humidity meter. Measure return and supply air where applicable, and assess the result against the equipment type and operating conditions. A simple temperature split is useful, but it is not a universal pass or fail number. Ducted systems, high latent loads, variable-capacity units and changing outdoor conditions all affect the reading.

Your electrical test gear should include a quality multimeter and clamp meter rated for the work you perform. Check supply voltage, running current, polarity where relevant, earth continuity and any manufacturer-specified electrical values. Record readings after the system has had sufficient time to stabilise. Starting a unit, seeing cold air for two minutes and leaving site is not commissioning.

For ducted and commercial work, add airflow measurement equipment when the scope calls for it. An anemometer, manometer or airflow hood may be needed to confirm static pressure, fan performance and distribution. The tool selection depends on whether you are commissioning a basic split, balancing a ducted system or verifying a more complex packaged unit.

Keep tools accurate and job-ready

Professional-grade tools only stay accurate when they are maintained. Check gauge zero points, inspect hose seals and replace damaged Schrader depressors. Keep the micron gauge sensor clean and capped, protect temperature probes from crushed leads, and store the vacuum pump upright in the boot or secured on the ute tray.

Calibration requirements vary by tool, customer contract and the type of work being performed. For critical measurements, use equipment with current calibration where required and keep records available. A reading is only useful if you can rely on it.

It also pays to keep a small commissioning consumables case: spare core tools seals, valve caps, flare nuts, vacuum pump oil, probe batteries, cleaning wipes and cable ties. These parts cost little compared with a return trip caused by a leaking service port or flat probe.

Do not forget the handover record

The last commissioning tool is the record you leave behind. Whether you use a paper sheet or a digital job form, capture model and serial details, refrigerant type, pressure-test result, evacuation result, refrigerant added or recovered, operating temperatures, electrical readings and any settings changed.

This protects your business, gives the customer confidence and makes future fault-finding faster. It also forces a final review: are service caps fitted and tightened, condensate drainage confirmed, isolation valves fully opened, panels secured and the controller explained to the customer?

A well-stocked kit is not about carrying every tool available. It is about having precise, dependable equipment for each commissioning decision. Build it around the systems you install most, maintain it between jobs and replace weak links before they cost you a call-back. Professional installations are completed with professional-grade tools.
