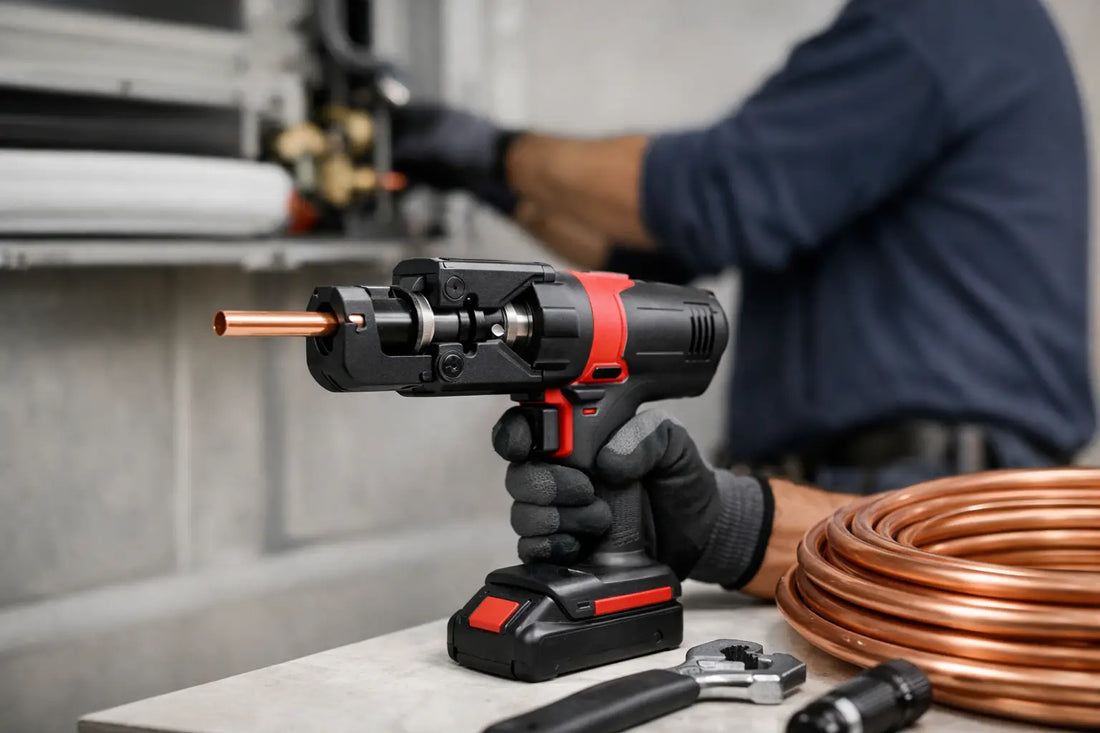

Cordless Copper Flaring Tool for Faster Installs

A flare connection can look acceptable at a glance and still become the weak point in an otherwise quality installation. Uneven cone contact, an off-centre tube, a split flare or the wrong projection can lead to a leak test failure, a return visit and lost time. A cordless copper flaring tool gives technicians a faster way to produce controlled 45-degree flares on site, particularly where repeated mini-split, heat pump and refrigeration connections are part of the day’s work.

For professional installers, the value is not simply speed. It is repeatability. A powered flaring tool removes much of the hand-force variation that can affect conventional eccentric cone blocks, helping produce a more uniform result across a run of copper line sets.

What a cordless copper flaring tool changes on site

Manual flaring blocks remain useful and have a place in every service vehicle. They are compact, proven and independent of battery charge. But they require the operator to control tube height, clamp pressure and cone travel every time. On a straightforward job, that is manageable. On a busy install with multiple flare joints, it can slow preparation and introduce inconsistency between connections.

A cordless tool automates the forming stroke. Once the correctly prepared copper tube is seated and clamped, the tool drives the flare to its programmed depth or until its controlled mechanism completes the cycle. The technician still needs to measure projection, deburr properly and inspect the finished flare, but the actual forming process is more consistent and much less physically demanding.

That matters when working in tight plant spaces, on roof-mounted equipment or through a long day of residential split-system installations. Less time spent winding a cone by hand means more time available for the parts of the job that protect system performance: correct pipe routing, pressure testing, evacuation and commissioning.

Where powered flaring earns its place

A cordless flaring system is a strong fit for installers completing regular flare-based work in common HVAC and refrigeration tube sizes. It is especially practical for technicians installing high-wall split systems, multi-head systems, VRF branch runs where flare connections are specified, condensing units and refrigeration equipment with copper flare fittings.

It is not automatically the right answer for every task. A service technician who only makes an occasional flare may prefer a quality manual eccentric tool and keep battery-powered equipment to a minimum. Likewise, if a fitting specification calls for brazing, swaging or another joining method, a flare tool is not a substitute. Select the joining method required by the equipment manufacturer and the job specification.

The real case for cordless is volume and consistency. If your team regularly prepares several line sets per week, the reduced effort and more repeatable flare geometry can justify carrying a dedicated powered tool.

The preparation still determines the result

A cordless tool does not correct poor tube preparation. Clean, square cuts and properly deburred ends remain essential. A tube cutter that is overtightened can deform soft copper; a rough internal edge can restrict flow and interfere with the flare profile. Both problems can show up later as sealing issues or poor connection quality.

Start by cutting the copper squarely, then ream the internal burr without removing excessive material. Keep chips out of the tube. Slide the flare nut on before forming the flare - an obvious step, but one that still catches people when the job is moving quickly. Check the tube outside diameter and use the correct die, clamp or adaptor supplied for that size.

Tube projection is equally important. Too little material can create a thin, undersized flare that does not seat correctly. Too much can form an oversized lip, distort the flare face or prevent proper nut engagement. Use the tool’s setting guide or depth gauge rather than relying on guesswork, particularly when changing between tube sizes.

Inspect every flare before assembly

The finished flare should be even, smooth and centred on the tube. Look for cracking around the edge, a lopsided cone, scoring, excessive thinning and any signs that the tube slipped while clamped. The surface that meets the fitting needs to be clean and free from damage.

A quick visual check takes seconds and can prevent a pressure-test issue later. If the flare is questionable, cut it off and remake it. Saving 50 mm of copper is not worth risking refrigerant loss, moisture ingress or a warranty call-out.

Choosing the right cordless flaring kit

Not all cordless flaring kits are built for the same work. The best choice depends on the tube sizes you handle, the refrigerants and equipment types you service, and whether you need a tool mainly for installs or for mixed service work.

First, confirm the supported imperial tube sizes. Many air-conditioning applications rely on 1/4, 3/8, 1/2, 5/8 and 3/4 inch copper, but your normal work may require a different range. A kit that covers the sizes you actually use is more valuable than one with accessories that stay in the case.

Next, consider the forming method and clamp design. A stable, well-machined clamp helps keep the tube square to the cone. A controlled, eccentric-style forming action is generally preferred for producing smooth flares in soft annealed refrigeration copper. Look for clear size markings and components that can be changed without slowing down the workflow.

Battery platform matters as well. If the tool uses a dedicated battery, assess runtime, charge time and whether a spare battery is available. For an installer working across several jobs, a flat battery is not a minor inconvenience. It can mean carrying a manual backup anyway. Keep batteries charged, protected from excessive heat and stored according to the manufacturer’s instructions.

Durability is another practical consideration. Field tools get knocked around in tool bags, utes and plant rooms. A solid case, secure die storage and readily identifiable parts make the kit easier to keep complete. Missing a single clamp or adaptor can stop the tool from being useful when you need it most.

Correct torque completes the connection

A well-formed flare is only one half of a reliable joint. The nut must be tightened to the equipment manufacturer’s torque specification using the appropriate spanners. Under-tightening can allow leakage. Over-tightening can crush or distort the flare, damage the fitting seat and create the same problem you were trying to avoid.

Use a torque wrench where specified, particularly on modern high-pressure systems. Avoid relying on feel alone when working with unfamiliar fitting sizes or thinner-wall copper. The goal is consistent clamping force at the flare seat, not simply making the nut as tight as possible.

From there, pressure test the completed pipework with dry nitrogen in line with the system requirements and applicable standards. Once the test is satisfactory, evacuate with a quality vacuum pump and verify the evacuation properly before releasing refrigerant or opening service valves. A precision flaring tool supports this process, but it does not replace disciplined commissioning practice.

A faster workflow without cutting corners

The strongest cordless flaring workflow is simple: measure and cut, deburr, fit the nut, set tube projection, form the flare, inspect it, torque the connection, then pressure test and evacuate. When the same sequence is followed every time, speed comes from reduced rework rather than skipped checks.

For contractors, that consistency is useful beyond the individual technician. It makes installation quality easier to standardise across a small crew. Newer installers can still be trained on correct copper preparation and inspection, while the powered tool reduces variation in the flare-forming stage.

AC Direct focuses on professional HVAC tools because line preparation is not a minor detail. It directly affects the quality, efficiency and serviceability of the installed system. Pairing a cordless flaring kit with accurate tube cutting, copper bending, evacuation and measurement equipment gives installers a more dependable process from first cut to final commissioning.

A cordless flaring tool will not replace trade judgement, but it can make good technique easier to repeat. Keep the copper clean, inspect the flare, use the specified torque and test every joint. That is how faster installs stay professional installs.
