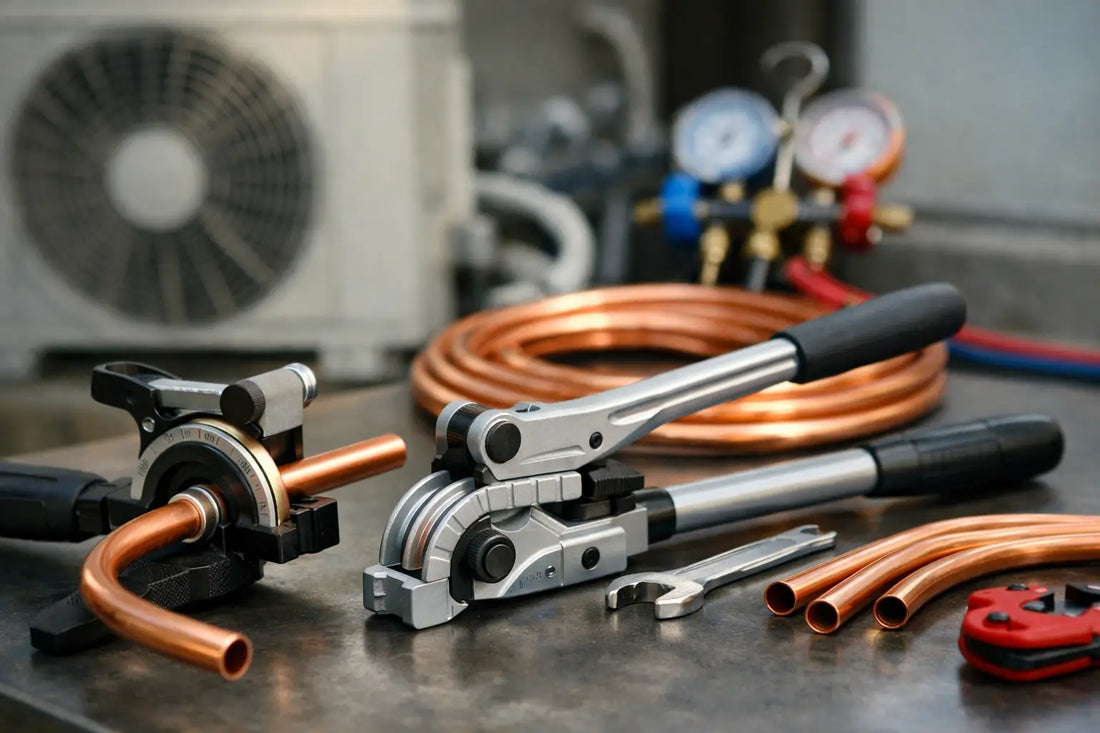

Choosing a Copper Tube Bender for Aircon Work

A kinked liquid line or flattened suction tube can turn a clean aircon install into a return visit. The right copper tube bender for aircon work gives you controlled radiuses, keeps the bore open and helps line sets sit neatly without stressing fittings, flare connections or brazed joints.

For working HVAC technicians, bending is not a cosmetic extra. It affects refrigerant flow, oil return, pressure drop and the time spent trying to make pre-insulated pipe look right on a wall bracket or condenser pad. A professional bender earns its place by producing the same result on the first bend and the fiftieth.

Why proper copper bending matters on aircon installs

Refrigeration-grade copper is made to be formed, but it still has limits. Bend it too tightly, too quickly or with poor support and the tube wall can collapse on the inside radius. The outside wall stretches, the tube ovalises and the restriction may be hidden once insulation and tape are in place.

That restriction matters more than it appears. A reduced internal diameter can add pressure drop and compromise system performance. On larger suction lines, poor bends can also affect oil movement back to the compressor. Even where the system runs, a rough line set reflects poorly on the installation and can make future servicing harder.

A purpose-built bender supports the copper through the bend rather than forcing it around an improvised shape. It produces a controlled radius, preserves tube form and lets you position the line accurately before you flare, braze or connect the final section.

Copper tube bender for aircon: which style suits the job?

The best style depends on the tube sizes you handle, the space available and how often you bend copper in the field. There is no single bender that is perfect for every residential split, VRF branch or refrigeration repair.

Lever and ratchet benders

Lever-style benders are a practical choice for common soft ACR copper sizes. The formed shoe holds the tube securely while the handle gives the operator mechanical advantage and a clear view of the bend angle. They are fast, accurate and well suited to repeated work where you need consistent 45, 90 or 180-degree bends.

Ratchet benders add more controlled force, which is useful on larger diameters or when working in awkward positions. The trade-off is size. A ratchet tool may need more clearance around the pipe, so it is not always the easiest option inside a tight ceiling void or beside an outdoor unit mounted close to a fence.

Crossbow and compact handheld benders

Compact crossbow-style benders are designed for access. They can be a strong choice when forming installed pipe or making corrections where a long handle cannot swing freely. Many technicians keep one in the service kit for this reason.

They are not a substitute for choosing the right tube route before installation. If the pipe is already boxed into a cramped corner, even a compact tool has limits. Plan the bend sequence and leave enough straight length to engage the bender properly.

Bending springs

Internal and external bending springs remain useful for light-duty work and confined spots, particularly on smaller annealed copper. They are inexpensive and easy to carry, but they require more feel from the installer than a formed-shoe bender.

A spring can help prevent a kink, but it does not give the same angle control or repeatability as a professional lever bender. For regular installation work, treat springs as a secondary tool rather than the main method for forming refrigerant lines.

Match the bender to tube size and material

Start with the outside diameters you use most. Common split-system line sets may include 1/4 inch, 3/8 inch, 1/2 inch and 5/8 inch copper, while larger capacity equipment can require bigger suction lines. The bender must match the actual outside diameter of the tube, not the nominal system capacity or insulation size.

Check whether the tool uses fixed-size shoes, interchangeable formers or a multi-size design. Fixed-size benders are simple and dependable when your work centres on one diameter. Interchangeable formers make more sense for installers carrying several line-set sizes across residential and light commercial jobs.

Also confirm the copper condition. Annealed coil copper is intended to be bent, although it can still flatten if the radius is too tight. Hard-drawn straight lengths are less forgiving and may need a larger radius or careful preparation. If the tube has been previously worked, damaged or repeatedly straightened, do not expect any bender to restore it to a reliable condition.

What to check before buying

A bender should make installation faster, not create another fitment issue in the ute. Look first at its supported tube sizes and minimum bend radius. A tighter radius is useful only if the tool maintains the tube profile without marking or crushing it.

Build quality matters in daily use. Smooth pivots, a positive locking mechanism and accurately formed shoes reduce operator effort and improve repeatability. A readable angle scale is valuable when you are pre-forming multiple sections or trying to keep paired lines parallel.

Consider access as carefully as capacity. A heavy-duty bender may be ideal at the bench or on an open plant platform, while a compact model may be the better tool behind a high-wall head unit. For contractors doing a mix of new installs and fault work, two complementary benders often make more commercial sense than forcing one tool into every situation.

Finally, inspect how the tool handles insulated line sets. In most cases, remove or pull back enough insulation to make the bend directly on clean copper, then reinstate insulation without gaps. Trying to bend through insulation can hide a poor result and make it harder to confirm the tube has retained its round profile.

A better process for clean, repeatable bends

Measure the route before you cut the tube. Allow for the centreline of the bend rather than measuring only to the corner or penetration point. This avoids a common issue where the tube reaches the right location but leaves no straight section for a flare block, coupling or braze joint.

Mark the bend start point on the copper, align that mark with the bender’s reference point and keep the tube seated fully in the former. Apply steady pressure rather than a sudden pull. Stop just short of the final angle, release the tool and check for springback. Copper may relax slightly depending on its size, temper and bend radius.

Keep bends in the intended plane. A line that twists while being bent may still connect, but it will fight you during mounting and can leave the suction and liquid lines looking uneven. Where two lines run together, form each with enough spacing for insulation, tape and service access rather than trying to make them sit hard against each other.

After each bend, inspect the tube before moving on. Look down the bore where possible, check for flattening at the inside radius and run a hand over the outside for scoring. If the bend has visibly collapsed or cracked, cut it out and remake it. Saving 300 mm of copper is not worth risking a restriction or leak point.

Common mistakes that cost time on site

The most frequent mistake is bending too close to the tube end. You need adequate straight length for the bender to grip and for the final connection to be made correctly. Another is trying to correct a bend by repeatedly flexing the same section back and forth. Copper work-hardens, and repeated movement can weaken the wall.

Avoid using a knee, a sharp edge or a random round object as a bending former. These methods can work in an emergency, but they offer no dependable control over radius or tube shape. They are a poor fit for professional installations where appearance, evacuation integrity and system performance all matter.

Do not use a tube bender to compensate for poor route planning. Before forming the first bend, account for wall penetrations, trunking, isolation valves, condenser service clearance and the path required for insulated pipe. The cleanest bend is usually the one that was planned before the copper left the coil.

Build a copper-prep kit that works together

A tube bender performs best as part of a proper copper-prep setup. Pair it with a sharp tube cutter for a square cut, a reamer that removes burrs without contaminating the line, and a reliable flaring or expanding tool matched to the connection method. If brazing is required, maintain correct purge and cleanliness procedures so the inside of the line remains as professional as the outside.

AC Direct focuses on the tools that support this workflow: copper bending, cutting, flaring, evacuation and measurement equipment selected for trade use. Choosing professional-grade tools across the full process reduces variation between jobs and makes it easier to hand over an installation you are prepared to stand behind.

A good bend should look routine because the tool and the method are doing their job. Select a bender for the copper sizes and access conditions you face most often, keep it in the kit, and let every line set leave the job round, supported and ready for reliable service.
