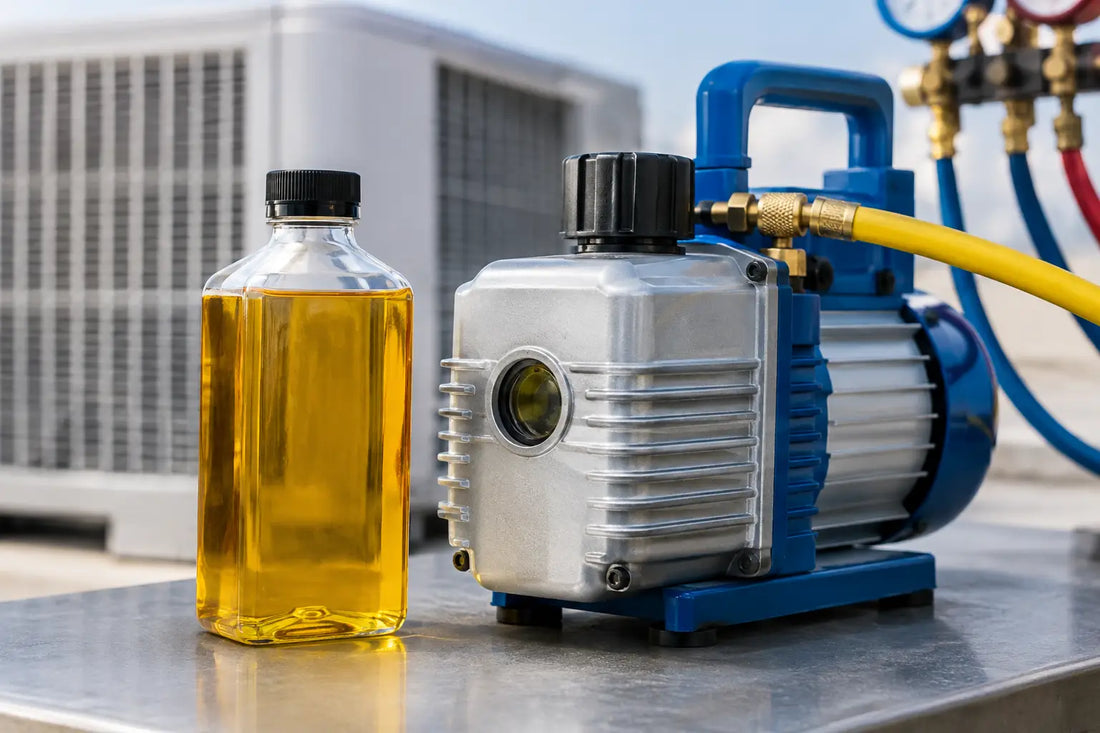

Vacuum Pump Oil for Better HVAC Evacuations

A vacuum pump can be dual-stage, high-CFM and freshly serviced, yet still struggle to pull a clean deep vacuum if the vacuum pump oil is wet, dark or the wrong grade. On a commissioning job, that shows up as slow pull-down, unstable micron readings and lost time waiting for a system that should be ready to charge.

For working HVAC and refrigeration technicians, pump oil is not a minor consumable. It is part of the evacuation process. Clean, correct oil helps the pump seal internally, manage heat and move moisture out of the circuit. Treat it as part of the job setup, not an afterthought once the pump is back in the ute.

What Vacuum Pump Oil Does in an HVAC Pump

In an oil-sealed rotary vane vacuum pump, the oil has several jobs. It lubricates moving components, seals the tight clearances between the vanes and pump chamber, transfers heat and helps carry contaminants towards the exhaust. That internal seal is a major reason an oil-sealed pump can achieve the low pressure needed for proper HVAC evacuation.

When oil is clean and dry, the pump can operate close to its rated performance. When it takes on water, refrigerant vapour, acids or debris, its vapour pressure rises and the pump’s ability to reach a deep vacuum falls away. You may still see the manifold gauges move into vacuum, but a digital micron gauge will often tell a different story.

That distinction matters. Compound gauges are useful for showing general direction, but they cannot confirm a dehydration-quality evacuation. A clean pump, fresh oil, large-diameter vacuum hoses, core removal tools and a properly placed micron gauge work together. No single item compensates for a weak process elsewhere.

Choose Oil by Pump Specification, Not Convenience

Use the oil grade and type specified by the vacuum pump manufacturer. Most HVAC rotary vane pumps use dedicated mineral vacuum pump oil, commonly in a viscosity range comparable to ISO VG 46 or ISO VG 68, but that is not a universal rule. Check the pump manual and the label on the oil bottle before filling.

Vacuum pump oil is formulated for low vapour pressure under vacuum. Engine oil, hydraulic oil, compressor oil and general-purpose lubricants are not substitutes, even if their viscosity appears similar. The wrong oil can increase vapour pressure, reduce ultimate vacuum, create foaming or affect seals and warranty coverage.

Synthetic vacuum pump oil may offer improved thermal stability and longer service life in certain pumps and operating conditions. It can make sense for frequent use, warmer ambient conditions or specialised applications, but only where the pump manufacturer approves it. Do not mix mineral and synthetic oils unless the manufacturer specifically confirms compatibility. A partial top-up with whatever is on the shelf can create more problems than it solves.

Oil capacity also varies by model. Fill only to the indicated level with the pump off and sitting level. Overfilling can push oil mist from the exhaust and increase carryover. Underfilling reduces lubrication and sealing performance. If the sight glass is hard to read, wipe it clean before deciding the level is low.

When to Change Vacuum Pump Oil

There is no single hour interval that suits every contractor. A pump used occasionally on clean residential splits has a different workload from one used daily on refrigeration repairs, commercial change-outs or systems exposed to a compressor burnout. The practical rule is simple: change oil based on condition and exposure, not just the calendar.

Fresh oil before a critical evacuation is cheap insurance. At a minimum, inspect it before each job and change it whenever it looks contaminated. Common warning signs include:

• Milky, cloudy or hazy oil, which usually indicates moisture contamination.
• Darkened oil, burnt smell or visible particles.
• Slow evacuation despite verified hoses, fittings and system integrity.
• Oil level that rises unexpectedly after operation, suggesting absorbed refrigerant or moisture.
• A pump that has been used on a wet system, burnout clean-up or known contaminated circuit.

In humid coastal conditions, moisture loading can happen quickly. Pulling down a system that has been open to air, exposed to rain or suffered a major leak places far more demand on the pump oil than a well-prepared installation. Change the oil immediately after a hard job if there is any doubt. Leaving contaminated oil in the crankcase allows moisture and acids to remain in contact with internal parts between jobs.

A Field Process That Protects the Pump

Good oil maintenance begins before the pump starts. Pressure-test and repair the system first. Evacuation is not a leak test, and it is not a way to remove a large quantity of water from poorly handled pipework. Keep copper capped, minimise the time a circuit is open and use dry nitrogen where the procedure calls for it.

Connect with short, large-bore vacuum hoses wherever practical. Remove Schrader cores using suitable core tools, and connect the micron gauge to the system rather than directly at the pump. This gives a reading that better represents the system condition instead of the vacuum at the pump inlet.

Before a major evacuation, especially after changing oil, run the pump with the inlet capped for a short period and verify its blank-off performance with a reliable micron gauge. This does not prove the pump is perfect, but it quickly identifies whether the pump and oil are capable of producing a low vacuum before you spend time diagnosing a system.

If the vacuum stalls or rises during isolation, do not immediately blame the equipment. Check the usual causes: system leaks, leaking hoses or adaptors, a loose core tool, moisture in the circuit, a faulty valve or contaminated pump oil. Isolate sections of the setup methodically. Replacing oil is fast, but it should be part of diagnosis rather than a substitute for it.

Never use a vacuum pump to recover refrigerant. Apart from being poor practice, it quickly contaminates the oil and can damage the pump. Recover refrigerant with approved recovery equipment, then evacuate the repaired circuit once it is ready.

Changing Vacuum Pump Oil Properly

Warm oil drains more completely than cold oil, so change it soon after running the pump where safe to do so. Switch the pump off, isolate it from the system and follow the manufacturer’s draining instructions. Use a clean drain pan and keep dirt away from the fill port.

Let the old oil drain fully. If it is badly contaminated, some manufacturers recommend a short flush run using fresh approved oil before a final refill. Do not assume this is required for every model. Follow the pump instructions, particularly if the pump has a gas ballast feature or a specific service procedure.

Refill to the correct sight-glass level, refit caps securely and run the pump briefly with the inlet blanked off. Recheck the level after it settles. Oil that looks clear in the bottle can still be compromised if it has been stored open, exposed to workshop dust or transferred through an unclean funnel.

Store unopened and opened oil containers upright with caps tightly fitted. Keep them out of direct heat and away from moisture. A small, clearly labelled bottle reserved for pump oil is better than a workshop container that has been used for several fluids.

Oil, Gas Ballast and Moisture Management

A gas ballast can help a rotary vane pump deal with water vapour by admitting a controlled amount of air during part of the pumping cycle. Used correctly, it can reduce condensation inside the pump. Used at the wrong stage, it can also limit how deep the vacuum will go.

The correct sequence depends on the pump manufacturer and the job conditions. Many technicians use the gas ballast during the early moisture-removal stage, then close it for final pull-down. Check the operating manual for your specific pump rather than relying on a one-size-fits-all routine. This is especially relevant when working on wet systems, but it does not remove the need for fresh oil.

Dispose of Used Oil Responsibly

Used vacuum pump oil can contain moisture, refrigerant residue, acids and other contaminants. Collect it in a sealed, labelled container and dispose of it through an approved waste-oil or hazardous-waste service in line with local requirements. Do not pour it into drains, onto soil or into general rubbish.

A few minutes spent checking oil before the next call can protect a costly pump and prevent an avoidable return visit. Keep approved oil in the service kit, pair it with a dependable micron gauge, and make clean evacuation a repeatable part of every professional installation.
