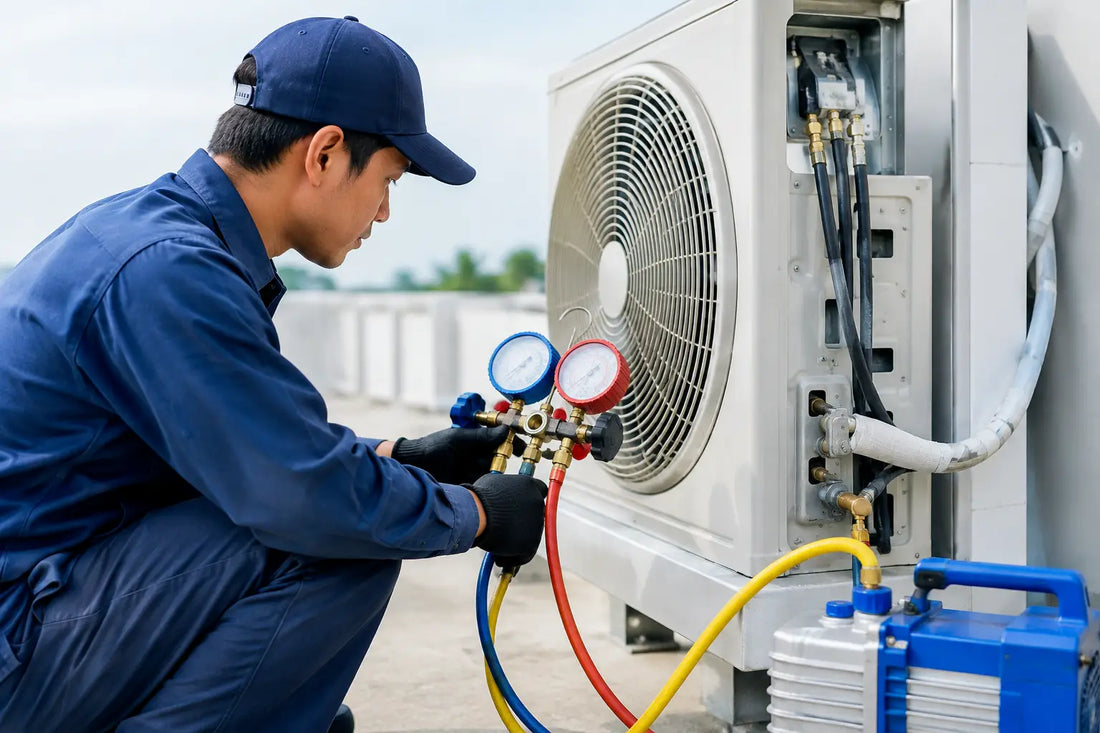

Aircon System Evacuation Procedure Done Right

A system can pass a pressure test, look perfectly clean, and still fail early if moisture and non-condensables are left in the pipework. The aircon system evacuation procedure is the commissioning step that removes those risks before refrigerant is released into a new or repaired system. It is not simply a matter of running a pump until the gauges look low.

A proper evacuation protects compressor oil, limits acid formation, helps prevent ice restrictions at the metering device, and gives the system its best chance of delivering rated performance. For working technicians, the difference comes down to process control: dry pipework, reliable connections, accurate micron measurement and enough time under vacuum.

Start the aircon system evacuation procedure after pressure testing

Evacuation is not a substitute for leak testing. Complete the pressure test first using dry nitrogen, following the equipment manufacturer’s pressure limits and your company procedure. Inspect flares, brazed joints, service valves and any repair points before connecting the vacuum equipment.

If the system contains refrigerant, recover it correctly before opening the circuit. Pulling a vacuum on a charged system is not acceptable practice and can damage equipment, contaminate the recovery process and create compliance issues. Australian refrigeration work must be performed by appropriately licensed personnel, with refrigerant handled in line with applicable requirements.

Once the pressure test is complete, vent the nitrogen safely, then prepare the circuit immediately for evacuation. Leaving an open system exposed to humid air creates extra work for the vacuum pump and increases the chance of moisture remaining in the oil and piping.

Use equipment that measures what matters

Compound gauges are useful for monitoring the job, but they do not confirm a deep vacuum. Microns are the measurement that matters during evacuation. A dedicated micron gauge, placed directly on the system rather than at the vacuum pump, gives a more truthful reading of the condition inside the pipework.

For dependable field results, use a dual-stage vacuum pump with clean oil, vacuum-rated hoses, core removal tools and a quality micron gauge. Digital manifold gauges can improve workflow and record keeping, but they should support, not replace, direct micron measurement.

Pump oil deserves more attention than it gets. If it is cloudy, dark or contaminated, change it before starting. Contaminated oil cannot pull efficiently and can make a tight, dry system appear difficult to evacuate. On a busy install day, fresh oil is cheaper than lost time chasing a false fault.

The hose setup also affects evacuation speed. Standard charging hoses have small internal passages and depressors that restrict flow. Short, large-diameter vacuum hoses and core removal tools reduce that restriction significantly. Removing valve cores while evacuating can turn a slow pull-down into a controlled, repeatable process.

Connect for flow, not convenience

Connect the vacuum pump to both sides of the system where practical, with valve cores removed. Position the micron gauge on the system side, ideally at the point furthest from the pump. This allows it to measure the vacuum in the equipment and pipework, not the vacuum being produced at the pump inlet.

On a split system installation, the outdoor unit service valves should remain closed while the field pipework and indoor coil are evacuated. The aim is to evacuate the newly installed circuit before releasing the factory charge. Always follow the manufacturer’s sequence where it differs, particularly on systems with specific commissioning requirements.

Before starting the pump, check every hose seal, adaptor and core tool. A leaking hose connection can mimic a system leak, waste time and make a stable standing vacuum impossible to achieve. The more fittings added to the setup, the more places there are for air to enter.

Pull a deep vacuum

Run the pump until the system reaches the manufacturer’s specified evacuation level. Where no different requirement is stated, a common field target is 500 microns or below. Reaching that number is useful, but it is only the first part of the test.

A fast initial drop followed by a slow crawl is normal when moisture is being removed. Water boils at much lower temperatures under deep vacuum, and the pump must keep running long enough to move that vapour from the system. Larger systems, long line sets, wet components and cold ambient conditions will all extend the process.

Do not judge evacuation time by the clock alone. A small residential split may pull down quickly with clean, dry pipework and an efficient setup. A system that has been open after a compressor failure, exposed to rain, or has extensive field piping may require substantially more time and a closer inspection of contamination risk.

Isolate and perform a standing vacuum test

Once the target vacuum is reached, isolate the system from the pump using the core tools or appropriate isolation valves. Do not rely solely on shutting off the pump if the hose and manifold arrangement can still influence the reading.

Watch the micron gauge for the specified standing period. A minor rise that stabilises may indicate residual moisture continuing to boil off. A rapid or continuous rise can point to a leak, a poor connection, contaminated oil, or moisture still present in the system.

There is no single micron-rise figure that replaces manufacturer instructions, system knowledge and sound diagnosis. Record the starting micron level, the time isolated and the reading at the end of the test. Consistent records give your team a benchmark and make callbacks easier to investigate.

If the vacuum holds within the required limits, reinstall valve cores with the system still under vacuum where your tools allow it. Then proceed with the manufacturer’s charging or service-valve release procedure. Avoid unnecessarily breaking the vacuum to fit cores or change hoses.

When evacuation stalls or the vacuum rises

A system that will not pull below target should be diagnosed, not rushed into commissioning. The issue is usually one of a few practical causes:

• A leak in the system, hose set, manifold connection or core tool seal is admitting air.
• Moisture in the pipework, oil or components is extending the dehydration process.
• Dirty vacuum pump oil, worn pump seals or an undersized pump is reducing evacuation performance.
• Restrictive hoses, installed Schrader cores or a blocked fitting are limiting flow.
• Cold pipework is slowing moisture removal and can make the reading unstable.

Start by proving the evacuation equipment. Blank off the pump with a known-good setup and check whether it reaches a deep vacuum quickly. If it does not, service the pump, replace the oil or inspect the hose and fitting seals before blaming the system.

If the pump performs correctly, isolate sections of the setup to find where the pressure rise begins. Recheck service ports, flare nuts and brazed joints. Where moisture is suspected, a controlled nitrogen sweep between evacuation cycles may help move water vapour from the circuit, provided the process aligns with your workplace procedure and manufacturer guidance. Do not use oxygen or compressed air for this work.

Avoid the shortcuts that create callbacks

The most common shortcut is evacuating through one standard charging hose with valve cores still installed. It may eventually reach a low reading, but it slows the job and makes it harder to verify system conditions. Another is relying on a manifold’s low-side scale rather than a micron gauge. Atmospheric pressure variation and gauge resolution make that an unreliable acceptance method.

Changing pump oil only when the pump fails is another expensive habit. Vacuum pumps work hard on installation days, especially in humid conditions. Clean oil, protected inlet ports and regular maintenance keep pull-down performance predictable.

Do not release refrigerant because the schedule is tight. If the standing vacuum does not hold, the system has not passed commissioning. Finding the cause before charging is faster than returning to recover refrigerant, repair a leak and start again.

Build a repeatable commissioning setup

Professional results come from using the same disciplined setup on every job: a maintained dual-stage pump, short vacuum-rated hoses, core removal tools and direct micron measurement. AC Direct stocks the vacuum and gauge equipment that helps technicians build that workflow without filling the ute with general-purpose gear.

The goal is not to chase the lowest possible number for its own sake. It is to leave a dry, leak-free circuit that holds a verified vacuum and is ready for the manufacturer’s charging procedure. Take the extra minutes to prove it before opening the service valves - that is time invested in an installation that stays commissioned.
