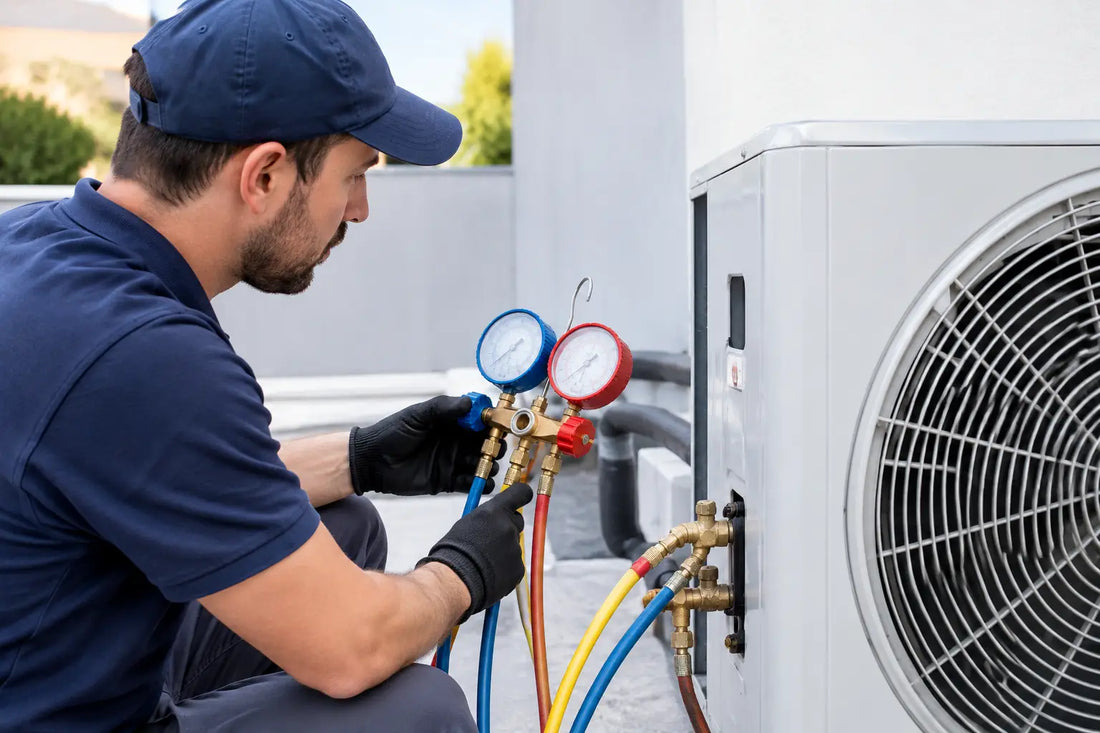

How to Pressure Test Aircon Pipework Properly

A system can pull a deep vacuum, start cleanly and still lose refrigerant weeks later if a flare, braze or service valve was never properly checked. To pressure test aircon pipework properly, use dry nitrogen, a reliable regulator and gauges you trust. It is the commissioning step that protects the installation, the customer and your time on the return visit.

For split systems, VRF work and refrigeration pipe runs, a pressure test is not a box-ticking exercise. It confirms the integrity of the full refrigerant circuit before evacuation and charging. Done methodically, it finds defects while access is still available - not after the wall has been closed, the ceiling is back in place or the unit is handed over.

Why pressure testing comes before evacuation

Evacuation removes air and moisture. It does not prove a system is leak-free. A vacuum can temporarily draw components together and make a small leak harder to identify, particularly around flare faces, valve cores and poorly supported pipework. Nitrogen pressure works in the opposite direction: it puts every joint under load, making faults easier to locate.

The test also exposes workmanship issues that may not be obvious on a visual check. A flare can look centred but have a hairline split. A brazed joint can appear complete while retaining a pinhole. A Schrader core may seal during connection but leak once the hoses are removed. Pressure testing gives you a controlled opportunity to catch these issues before refrigerant enters the circuit.

The required test pressure depends on the equipment, refrigerant, ambient conditions and manufacturer instructions. Higher-pressure refrigerants and equipment have different limits from older systems. Always work to the unit manufacturer’s specified test pressure and never exceed the lowest rated component in the connected circuit.

Equipment for pressure testing aircon pipework

Professional results come from a controlled setup, not simply putting gas into the line set. Your core kit should include a nitrogen cylinder, adjustable nitrogen regulator, correctly rated charging hose, a quality manifold or digital gauge set, and leak-detection solution. A calibrated electronic leak detector is a valuable second check, particularly on larger systems or difficult-to-access joints.

Use dry, oxygen-free nitrogen only. Never use oxygen or compressed air to pressure test refrigeration pipework. Oil, moisture and oxygen contamination can compromise the system, while oxygen under pressure creates a serious safety risk around oil and refrigerant residues.

Digital manifold gauges provide a clear advantage where repeatability matters. They display pressure precisely, log readings on some models and make it easier to see a genuine pressure change rather than relying on a moving analogue needle. That said, the gauge is only as good as its condition. Check hoses, seals, valve seats and connections before assuming the pipework is at fault.

A practical setup includes:

• A nitrogen bottle secured upright and fitted with a suitable regulator.
• A manifold or digital gauge set rated for the intended pressure range.
• Low-loss hoses and sound service-port couplers with undamaged seals.
• Leak-detection solution approved for refrigeration work.
• A calibrated electronic leak detector for final confirmation where required.

Set up the circuit before introducing nitrogen

Start by confirming every flare, braze, service valve, branch connection and access point is complete. Inspect pipe supports and bends as well. Copper rubbing against sheet metal or another line may not leak during the test, but it can become a future failure point once the system is operating.

Ensure the outdoor unit service valves are in the correct position for the part of the circuit being tested. On a new split installation, the factory charge remains isolated inside the condensing unit until the field pipework has passed testing and evacuation. Do not release refrigerant merely to test a line set.

Connect the nitrogen regulator to the cylinder, then connect the charging hose and gauge set to the circuit. Keep the regulator backed off before opening the cylinder valve. Crack connections only where appropriate and safe to purge air from hoses, then tighten them. Introducing room air through careless hose connection defeats the purpose of clean commissioning work.

Before applying test pressure, verify that your manifold valves are set correctly and that all connected hoses, adaptors and cores are rated for the job. A failed hose seal can look exactly like a pipework leak and waste valuable fault-finding time.

How to pressure test aircon pipework step by step

Introduce nitrogen slowly. Start with a low initial pressure to identify major leaks without stressing the circuit or creating unnecessary noise and risk. Listen around accessible joints and apply leak solution to flares, brazed connections, valves and caps. Bubbling solution points to the leak location, but use enough solution to form a stable film rather than flooding the joint.

If the low-pressure check is clean, raise the pressure in stages to the manufacturer’s stated test pressure. Allow the pressure to stabilise before recording the reading. Pressurising in stages gives you a chance to stop early if a fault appears and reduces the chance of disturbing a marginal flare or connection.

Once at the specified pressure, isolate the nitrogen source where your procedure allows and record the pressure, ambient temperature and start time. Temperature matters. Nitrogen pressure rises as the pipework warms and falls as it cools, so a reading taken in direct sun beside a condenser will not match one taken later as the afternoon cools.

Leave the circuit for the required hold period under the manufacturer’s instructions or your company commissioning procedure. On a simple residential split system, a stable reading over an appropriate test period may be sufficient. Larger commercial pipe networks, concealed runs and systems with many joints usually warrant a longer hold and more detailed records.

A pressure drop is not automatically proof of a leak. First rule out ambient temperature movement, a leaking hose connection, manifold valve seepage or a faulty gauge. Disconnecting a suspect test rig and rechecking can save you from opening a perfectly sound installation. If the pressure loss is genuine, locate and repair the issue, then repeat the full test. Do not top up and hope for the best.

Finding the leaks that cost callbacks

Flare connections deserve special attention. The copper should be cut square, reamed carefully, deburred without pushing swarf into the tube, and formed with the correct flaring tool. Over-tightening can crack the flare; under-tightening can leave an imperfect seal. A torque wrench used to the equipment specification brings consistency, especially across repeat installations.

On brazed work, inspect for complete capillary flow and signs of oxidation. Purging with low-flow nitrogen during brazing reduces internal scale that can later damage metering devices or restrict oil return. Pressure testing confirms external tightness, but clean brazing practice protects the inside of the circuit as well.

Do not overlook service ports, valve caps, core tools and transitions between different fitting types. Valve caps are part of the sealing system, not cosmetic covers. Fit and tighten them correctly after testing and commissioning.

An electronic leak detector can help narrow down small leaks after a stable pressure test raises suspicion. Follow the detector manufacturer’s warm-up, sensitivity and sampling guidance. Use it around a clean, dry joint, and confirm any indication with leak solution or another reliable method. Wind, residue from cleaning chemicals and a poorly maintained sensor can produce misleading results.

What happens after a successful test

When the circuit has held pressure and every joint has been checked, release the nitrogen safely and in accordance with site requirements. The next stage is evacuation using a properly sized vacuum pump, suitable hoses and a micron gauge. Pulling a deep vacuum and verifying that it holds is still necessary, even after a successful nitrogen test.

Pressure testing and evacuation do different jobs. One verifies that the circuit is tight under positive pressure; the other removes non-condensables and moisture before refrigerant is released or charged. Skipping either step leaves risk in the installation.

Record the test pressure, duration, ambient conditions, result and any repairs made. These notes support quality control, provide useful evidence for commercial work and make later diagnostics faster. For contractors, they also turn a good installation process into a repeatable standard across every technician and job.

Professional installations are built on controlled steps, not assumptions. With accurate gauges, dependable nitrogen regulation and properly prepared copper, pressure testing becomes one of the quickest ways to protect the quality of the work you put your name to.
