Best HVAC Leak Detection Tools for Trade Work

A system that will not hold charge, pulls into a vacuum slowly or returns with low suction pressure is rarely a guessing game. The right test method will narrow the fault quickly. The best HVAC leak detection tools combine a sensitive electronic detector with controlled nitrogen pressure testing and a simple way to confirm the exact leak point before repair.

For installers and service technicians, tool choice comes down to the job in front of you. A new split-system installation with exposed flare joints needs a different approach from a charged refrigeration cabinet with an intermittent leak in an evaporator. Build a kit that covers both fast fault finding and reliable confirmation, rather than relying on one method for every system.

What makes a leak detection tool worth carrying?

Professional leak detection is about repeatable results. The tool must help you locate a leak without creating false positives from oil residue, cleaning products, moisture or a recently discharged service port. It also needs to suit the refrigerants and environments you work with, whether that is a residential reverse-cycle system, a VRF installation or commercial refrigeration equipment.

Sensitivity matters, but it is not the only specification. A highly sensitive detector that alarms continuously around a contaminated plant room is slower to use than a quality unit with adjustable sensitivity and a stable reference function. Look for clear audible and visual indication, a flexible probe that reaches behind condensers and indoor coils, replaceable sensors where applicable, and a battery system that will last through a full service run.

For pressure testing, accuracy and control matter more than simply applying more pressure. A professional regulator, rated hoses, reliable manifold or digital gauges, and dry nitrogen give you a controlled test that protects equipment and gives meaningful pressure readings.

The best HVAC leak detection tools by task

Electronic refrigerant leak detector

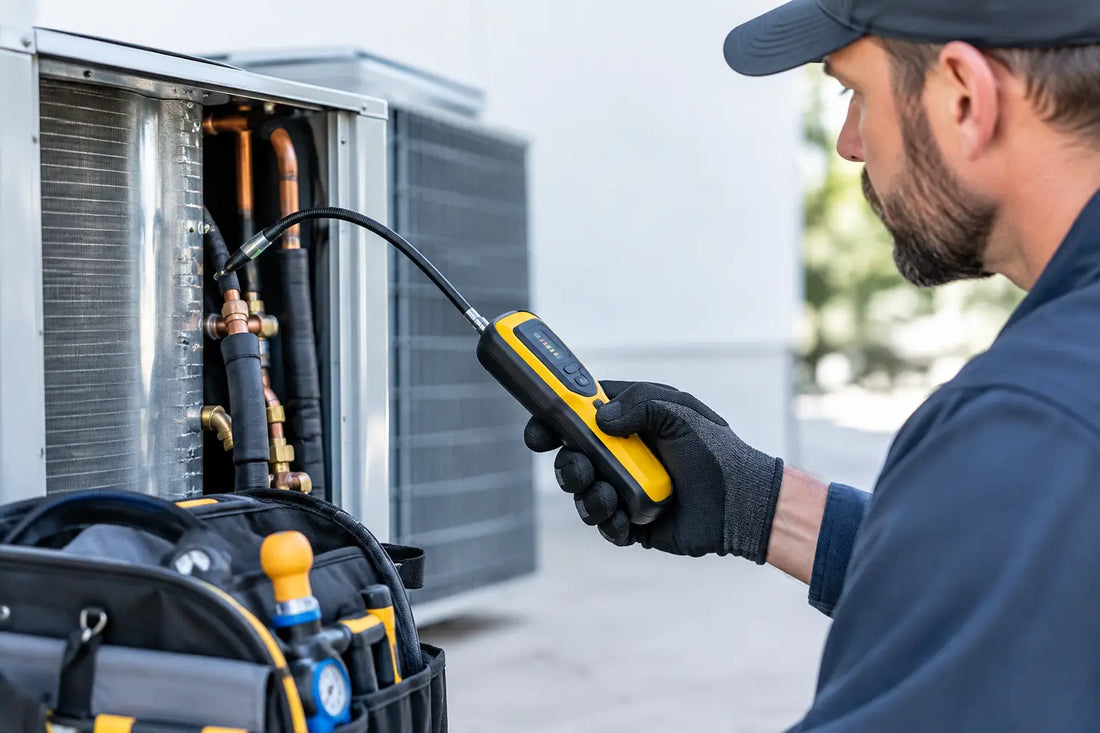

An electronic detector is the first tool most technicians reach for on a charged system. It is fast, portable and effective for checking common failure points: flare nuts, service valves, Schrader cores, brazed joints, distributor tubes, coil bends and compressor connections.

Heated diode and infrared-style detectors are popular professional options because they can identify low-level refrigerant leaks when used correctly. Run the probe slowly - no faster than about 25 to 50 mm per second - and keep the tip close to the suspected area without touching oily joints. Start on a lower sensitivity setting around a known clean area, then increase sensitivity as you close in on the source.

Electronic detectors have limits. Wind, airborne refrigerant from a previous leak, and a heavily contaminated condenser compartment can confuse the reading. Always clear the area, allow time for refrigerant to disperse, and make a second pass from a different direction. A detector tells you where to investigate; it should not be the only evidence used to approve a repair.

Dry nitrogen pressure test kit

A nitrogen pressure test is the foundation of confident leak diagnosis on an evacuated system, a new installation, or any system that has been recovered for major repairs. It allows you to test pipework and components without introducing refrigerant, then monitor whether pressure holds over time.

The essential gear is a dry nitrogen cylinder, a quality HVAC regulator, rated charging hoses and accurate gauges. Digital manifold gauges are especially useful here because they provide precise readings and can log pressure changes, helping separate an actual leak from a temperature-related movement in pressure.

Test pressure must suit the equipment manufacturer’s limits, refrigerant type and the section being tested. Do not apply a blanket pressure to every system. Isolate components where necessary, stabilise the pressure after charging, and record both ambient temperature and test pressure. A pressure drop after the system has equalised deserves investigation. A small movement during a sharp temperature change may not indicate a leak at all.

Nitrogen finds the system leak. It does not always find the exact point quickly, particularly on long pipe runs or enclosed coils. That is where a bubble solution earns its place in every service kit.

Bubble solution

Bubble solution is low-tech, inexpensive and still one of the most useful confirmation tools available. Apply a purpose-made solution to accessible suspect joints, valve cores and flare connections while the circuit is under safe test pressure. Persistent growing bubbles give you a clear, visible result that is easy to document and impossible to mistake for an electronic detector reacting to residual refrigerant.

Use a solution made for HVAC work rather than detergent mixed in a spray bottle. General soaps can leave residue, promote corrosion on some surfaces and produce inconsistent bubbles. Apply enough product to coat the connection, allow a short dwell time, then wipe the area clean after testing.

Bubble solution is not practical for an inaccessible indoor coil, a buried pipe section or a leak so small it needs extended test time. It is a confirmation method, not a complete diagnostic strategy.

UV dye and UV inspection lamp

UV dye can be useful for persistent, difficult-to-locate leaks, especially where a system has lost charge over a long period and the suspected area is spread across a large coil or pipe network. Once an approved dye has circulated, a UV lamp and glasses can reveal fluorescent traces at the leak point.

The trade-off is time and compatibility. Dye must be specifically approved for the refrigerant oil and system application. It is not the first choice for every modern system, and it should never be added as a substitute for proper pressure testing. Check manufacturer guidance before use, particularly on systems with sensitive components or warranty requirements.

Ultrasonic leak detector

Ultrasonic detection is a specialised option for compressed gas leaks and can help in noisy or hard-to-access environments. It detects the high-frequency sound created when gas escapes under pressure, rather than detecting refrigerant itself. This can be useful during nitrogen testing, but performance depends on access, background noise and the size of the leak.

For most air-conditioning service vehicles, an electronic refrigerant detector, nitrogen kit and bubble solution deliver better day-to-day value. Ultrasonic equipment becomes more compelling for larger maintenance teams, industrial sites and plant rooms with extensive pipework.

A field workflow that prevents repeat call-backs

Start by inspecting the obvious mechanical risks. Look for oil staining at flare joints, rub-through points, damaged insulation, loose valve caps, corrosion at coil returns and vibration around compressor discharge lines. Oil is a clue, not proof, but it tells you where to test first.

If refrigerant remains in the system, use an electronic detector to survey likely points before recovery. Recover refrigerant in line with applicable requirements - do not vent refrigerant to atmosphere. Once repairs or major investigation require the circuit to be opened, pressure test with dry nitrogen within the manufacturer’s specified limits.

Allow the pressure to stabilise before judging the result. Then check accessible joints with bubble solution and use an ultrasonic detector where it adds value. After repair, repeat the pressure test. A repair is not complete because a flare has been tightened or a braze looks clean; it is complete when the circuit holds pressure, evacuates properly and remains stable during commissioning.

For Australian work, refrigerant handling and recovery must be carried out by appropriately licensed personnel. Good tools support compliant work, but they do not replace the correct procedures, manufacturer data or site safety controls.

Choosing the right kit for your workload

For split-system installation and residential service, prioritise a dependable electronic leak detector, digital manifold gauges, dry nitrogen regulator and hoses, and a quality bubble solution. This combination covers flares, service ports, commissioning faults and most accessible component leaks without filling the ute with specialist gear.

For commercial refrigeration or larger air-conditioning maintenance, consider adding a higher-sensitivity detector with a replaceable sensor, a larger-capacity nitrogen setup and data-capable digital gauges. Long pipe runs, multiple circuits and variable ambient conditions make accurate records more valuable. UV and ultrasonic tools are worthwhile additions when the work regularly involves inaccessible coils, recurring faults or complex plant.

AC Direct’s focused HVAC tool range is built around this practical reality: professional installations and repairs depend on precise preparation, measurement and verification. Buy the tool that fits the task, but do not under-specify the equipment that proves your repair.

The fastest leak search is rarely the one with the loudest detector. It is the one that pairs a controlled test, a careful inspection and a clear confirmation before the system is charged and handed back.
