Split System Pressure Test for Reliable Installs

A split system pressure test is where an installation either proves itself or starts building a callback. Copper joints can look clean, flare faces can feel tight, and service valves can appear untouched - but a controlled nitrogen test is what confirms the refrigerant circuit will hold pressure before evacuation and charge release.

For installers, the goal is not simply to watch a gauge sit still for a few minutes. It is to test the complete field-pipework section at the correct pressure, identify any leak while the system is still accessible, and document a result you can stand behind. Professional installations are completed with professional-grade tools, and pressure testing is no exception.

What a split system pressure test should prove

A pressure test checks the integrity of the installed refrigerant pipework, flare connections, brazed joints, service-port cores and any field-installed branch connections. On a standard wall split, that generally means the line set between indoor and outdoor units. On larger multi-head or light commercial work, it can include a much broader network of joints and isolation points.

The test does not replace evacuation. Nitrogen pressure testing finds leaks; evacuation removes air and moisture. Treating one as a substitute for the other is a fast way to compromise performance, reliability and compressor life.

It also does not mean charging the circuit with refrigerant to see what happens. Use dry nitrogen for pressure testing. Never use oxygen or compressed air. Oxygen can create a serious fire and explosion hazard in contact with oil, while compressed air introduces moisture into a refrigeration system.

Set up the right test equipment

Reliable results start with equipment that is clean, rated for the job and capable of showing small changes. A digital manifold or dedicated digital pressure gauge gives better resolution than a tired analogue set, particularly when ambient temperature is shifting through the day.

You need a dry nitrogen cylinder, a nitrogen regulator designed for refrigeration pressure testing, charging hose assemblies rated for the intended pressure, and a manifold or digital gauge set compatible with the system and working pressures involved. A quality core-removal tool, isolation valves and a leak detector are equally useful when troubleshooting a suspected loss.

Check hoses, seals, depressors and quick couplers before connecting. A leaking hose-end gasket or a valve core held partially open can send you looking for a fault in a perfectly sound installation. Keep every component in the test path pressure-rated above the manufacturer-specified test pressure.

Use the manufacturer’s pressure, not a habit

There is no single correct pressure for every split system. Refrigerant type, equipment design, pipe sizing and manufacturer instructions all affect the approved test pressure. Higher-pressure refrigerants and newer equipment may require a different approach from an older R32 or R410A residential system.

Read the installation manual and follow the stated pressure test procedure. Do not exceed the lowest-rated component in the circuit, including hoses, gauges, fittings and service tools. A familiar number from a previous job is not a substitute for the specification in front of you.

A disciplined pressure-test process

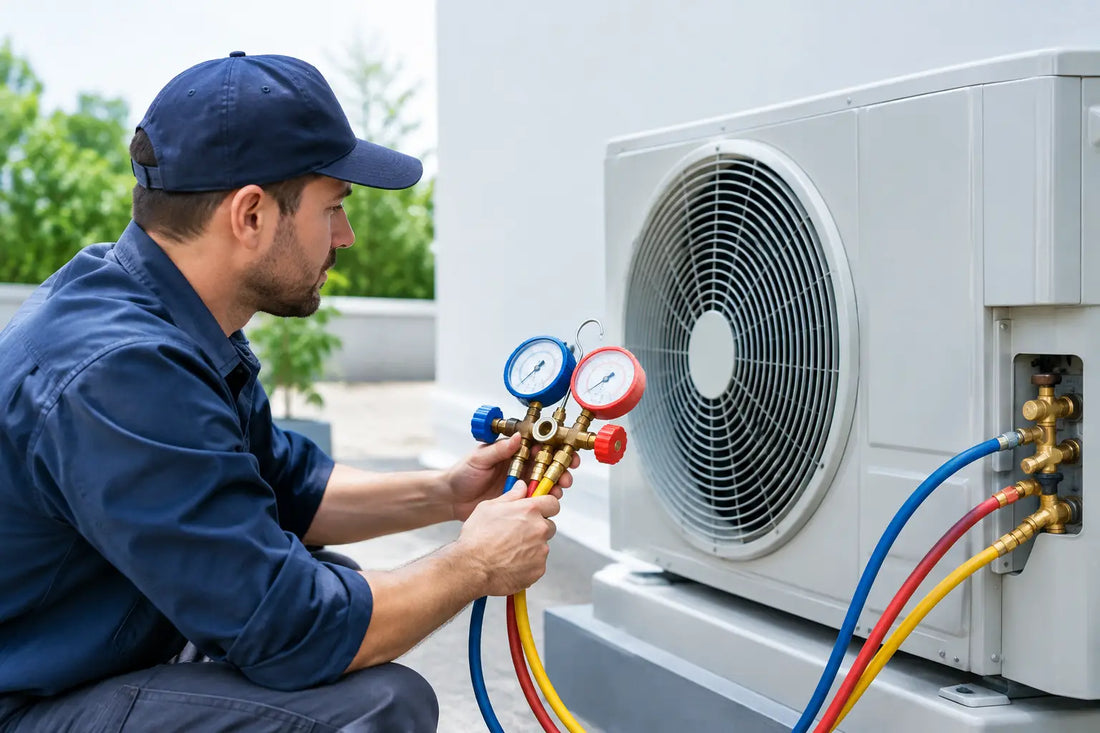

With the pipework complete and the service valves still closed, connect the nitrogen regulator and gauges to the field-installed circuit. If practical, use short, known-good hoses and minimise unnecessary adaptors. More connections create more places for the test rig itself to leak.

Introduce nitrogen gradually. A fast blast can disturb a flare or make it harder to identify where a problem begins. Bring the system to an initial lower pressure and inspect the obvious points: both flare connections, any brazed joints, service ports and branch fittings. Apply an approved leak-detection solution where appropriate and look for active bubbles.

Once the preliminary check is clear, raise pressure in stages to the manufacturer’s specified test level. Allow the pressure to stabilise before recording it. Nitrogen temperature changes as it is introduced, so an immediate reading is not the baseline. Give the pipework time to equalise with the surrounding temperature.

Record the pressure, time and ambient conditions. On a straightforward residential split, a stable hold period may reveal an installation issue quickly. On longer pipe runs, concealed pipework, multi-head systems or a job where temperature is moving substantially, a longer monitored period gives a more meaningful result. The right duration depends on the system, site conditions and required procedure.

Temperature can move the gauge

A gauge reading can change without a leak. Nitrogen pressure rises as the line set warms and falls as it cools. Direct sun on the condenser, a cold ceiling void, an afternoon weather change or even a warm hand on a small gauge can influence the result.

That is why a pressure drop alone is not enough to diagnose a leak. Compare the reading with ambient conditions and give the system time to settle. If temperature is stable and pressure continues to fall, investigate. If both temperature and pressure are changing, stabilise conditions where possible and repeat the observation rather than making a rushed call.

Digital gauges with temperature awareness make this easier, but good field practice still matters. Shield the gauge from direct sun, avoid leaving a hose stretched across hot roofing, and record what changed during the hold.

Finding leaks without wasting time

When a pressure test does not hold, start with the connections you have touched most recently. Flare nuts, poorly prepared flare faces, damaged copper, loose valve cores and manifold connections are common offenders. Check the test equipment before cutting into the install.

Isolate sections where the system design allows it. This narrows the search and prevents a large pipe run from becoming a guessing game. An electronic leak detector suited to the refrigerant or tracer gas being used can help, but confirm its use is compatible with your test method and follow its operating requirements.

Leak-detection solution remains one of the most effective tools for accessible joints. Apply it to a clean connection and allow time for small bubbles to develop. Do not use dishwashing liquid or improvised soaps that can leave residue, promote corrosion or create a false result.

If a flare leaks, do not keep tightening it until the nut or copper gives up. Recover the test gas safely, inspect the tube end, remake the flare with the correct tool and torque it to specification. A precision flaring tool and torque wrench cost less than repeated return visits.

What happens after the test holds

Once the split system pressure test is complete, release nitrogen safely in line with site requirements and environmental obligations. Do not leave the circuit pressurised while moving straight into evacuation without confirming the next procedure and connection arrangement.

Evacuate with a properly sized vacuum pump, large-diameter vacuum-rated hoses where practical, and a micron gauge connected to the system rather than relying on a manifold display alone. Pulling a deep vacuum and performing a decay check confirms the circuit is dry and supports the pressure-test result. If vacuum cannot be achieved or will not hold, do not assume the issue is moisture - reassess for a leak or a restriction in the evacuation setup.

Only after the system has passed pressure testing and evacuation should the service valves be opened and commissioning proceed according to the manufacturer’s instructions. Verify operating pressures, temperatures, electrical performance and condensate drainage before handing over the job.

Common shortcuts that create callbacks

The most expensive leaks are often caused by trying to save ten minutes. Skipping stabilisation time, testing with the wrong gas, relying on a manifold that has not been checked, or opening the unit valves before confirming the field pipework all introduce avoidable risk.

Another frequent mistake is treating a pressure test as a visual check. A clean-looking flare is not proof of a sound flare. Proper tube cutting, deburring, correct flare dimensions, lubrication where specified and torque control all affect the outcome.

For technicians completing multiple installs each week, repeatability matters more than improvisation. Keep a dedicated pressure-test kit in working order, replace worn hose seals, use accurate digital measurement tools and follow the same recorded process on every job. It protects the installation, the customer relationship and your time on the next callout.

A pressure test is not the glamorous part of a split install, but it is one of the clearest signs that the job has been completed properly. Take the extra time while every connection is still within reach - it is far better than tracing refrigerant loss after the walls are closed and the customer is waiting for cooling.
