How to Use Digital Manifold Gauges Safely

A digital manifold earns its place in the kit when it shortens diagnosis without sacrificing accuracy. Knowing how to use digital manifold gauges properly means more than connecting three hoses and reading pressures. The gauge needs the correct refrigerant selected, sound hose connections, stable operating conditions and readings interpreted alongside temperatures, airflow and the system’s charging method.

For Australian air-conditioning and refrigeration work, refrigerant handling must be carried out by appropriately licensed technicians. Treat every connection as a chance to lose refrigerant, introduce moisture or create a safety issue. A clean, deliberate process protects the system, the job margin and your reputation.

Start with the manifold and the job details

Before connecting to a system, inspect the manifold, hoses, seals and valve cores. Damaged O-rings, flattened gaskets and loose hose depressors cause small leaks that can distort a vacuum test or waste refrigerant during charging. Fit low-loss fittings where practical, particularly on critical evacuation and commissioning work.

Power up the gauge and confirm its battery level. Then select the exact refrigerant in the instrument menu. Do not choose a refrigerant because its pressure-temperature curve looks close enough. A digital manifold converts measured pressure into saturated temperature using the refrigerant profile selected, so the wrong setting makes superheat, subcooling and saturation values meaningless.

Check the job information before opening a service port. Confirm the equipment type, refrigerant, target charging method, expected indoor and outdoor conditions, and whether you are diagnosing, recovering, evacuating or charging. This sounds basic, but it stops a technician from applying split-system charging logic to equipment that needs a weighed charge, or from reading a low-pressure fault as a refrigerant shortage before airflow has been checked.

Know what each port and reading does

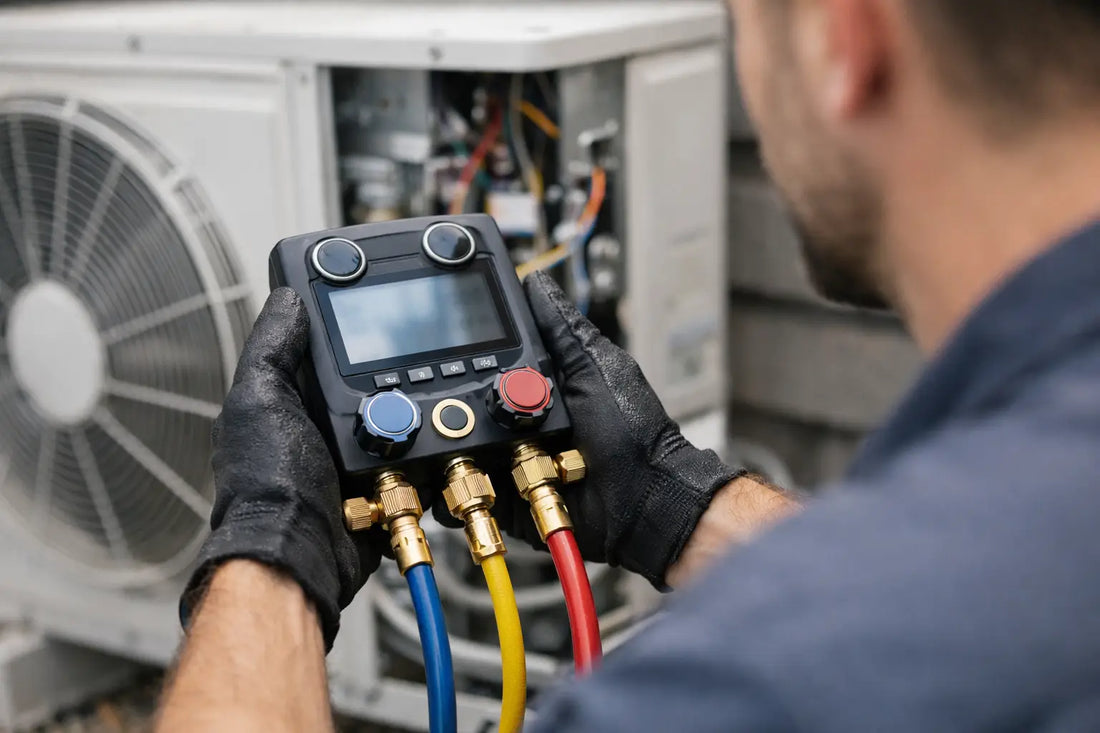

A standard digital manifold has a low-side connection, high-side connection and centre service port. The blue low-side hose connects to the suction service port. The red high-side hose connects to the liquid service port or discharge-side test point, where provided. The centre hose is used for evacuation, charging, recovery or pressure testing, depending on the task.

The screen commonly displays low-side and high-side pressure, corresponding saturation temperatures, and calculated superheat and subcooling. Many professional units also show vacuum, temperature-clamp readings, test data and refrigerant weight when paired with compatible accessories.

Pressure alone does not diagnose a system. A low suction pressure may point to a restriction, low load, poor airflow, a low charge or a metering issue. High head pressure could be caused by overcharge, a dirty coil, condenser airflow problems, high ambient conditions or non-condensables. Digital readings are fast and precise, but they still need field judgement.

How to use digital manifold gauges for diagnosis

With both manifold valves closed, connect the hoses to the relevant service ports. Crack the connections carefully and use low-loss fittings where fitted. If the system is operating, allow readings to settle rather than reacting to the first numbers on the screen.

For a cooling-mode assessment, measure the suction line temperature close to the evaporator outlet or suction service valve, and the liquid line temperature close to the condenser outlet or liquid service valve. Clamp probes should be secure, insulated from ambient air where needed, and positioned on clean copper. A clamp hanging loose on a pipe is not a temperature measurement.

The gauge calculates superheat by comparing suction-line temperature with low-side saturated temperature. It calculates subcooling by comparing liquid-line temperature with high-side saturated temperature. These values are useful only when the refrigerant selection, pressures and pipe temperatures are correct.

On a fixed-orifice system, superheat is often the key charging measurement, using the manufacturer’s charging chart and the measured indoor wet-bulb and outdoor dry-bulb conditions. On a TXV or EEV system, subcooling is commonly more useful, but the manufacturer’s specified method always takes priority. Variable-speed equipment may require a particular test mode and stabilisation period before readings mean anything.

While the gauges are connected, check the basics that influence every result: return-air temperature, supply-air split, indoor blower operation, filter condition, coil cleanliness, outdoor fan performance and ambient temperature. A set of numbers without these checks can lead to an unnecessary recharge or a missed airflow fault.

Evacuating a system with a digital manifold

Digital manifolds are useful during evacuation, but they are not automatically a replacement for a dedicated micron gauge. For an accurate dehydration test, place a calibrated micron gauge directly on the system or as close to it as possible, away from the vacuum pump. This reduces the effect of hose and pump-side restrictions on the reading.

Connect large-diameter vacuum-rated hoses directly to the service ports where possible. Remove Schrader cores with core-removal tools if the procedure and equipment allow it. Restrictive charging hoses and cores can turn a quick evacuation into a long wait, especially on larger pipe runs.

Connect the vacuum pump to the centre port or, preferably, use a setup that gives the pump direct, unrestricted access to both sides of the system. Open the required valves, start the pump and monitor the micron gauge rather than relying on elapsed time. The target evacuation level and hold-test requirements should follow the equipment manufacturer’s instructions and your company procedure.

Once the target vacuum is reached, isolate the system from the pump and conduct a standing vacuum test. A rapid rise can indicate a leak, moisture still boiling off, a leaking hose connection or a valve that has not fully isolated. Diagnose the cause rather than repeatedly running the pump and hoping the number improves.

Charging accurately and with minimal loss

Charging starts with the nameplate and installation instructions. For many split systems, the initial charge is specified by weight, with an additional charge required for pipe length beyond the included allowance. Use an accurate refrigerant scale and charge the stated mass. Do not charge by pressure when the manufacturer specifies a weighed charge.

Purge air from the charging hose in a controlled manner, keeping refrigerant release to an absolute minimum. Connect the cylinder securely on the scale and zero the scale before transferring refrigerant. For blended refrigerants, follow the cylinder and manufacturer guidance on vapour or liquid charging. Charging a blend incorrectly can alter its composition and produce unreliable performance readings.

When liquid charging into the low side of a running system, use the correct charging method or restriction device to prevent liquid slugging at the compressor. A digital manifold can show the changing pressures and temperatures, but it cannot protect a compressor from poor charging practice.

Add refrigerant in measured increments where final commissioning calls for adjustment. Allow the system to stabilise between changes, particularly on inverter equipment. Watch the specified charging metric, but also confirm sensible system operation: stable suction conditions, appropriate supply-air temperature, condenser performance and no abnormal compressor noise.

Finish the job without giving back the accuracy

Once measurements are complete, close the manifold valves, isolate the system correctly and remove hoses using low-loss fittings. Refit service-port caps with sound seals. The caps are part of the refrigerant circuit’s long-term leak protection, not cosmetic covers.

Save or record the readings if your manifold supports job documentation. At minimum, note refrigerant type, ambient conditions, pressures, line temperatures, superheat or subcooling, vacuum result, refrigerant added or recovered, and any corrective work completed. Good records make callback diagnosis faster and give the next technician a proper starting point.

Clean the manifold before it goes back in the ute. Keep hose ends capped, store clamps carefully and replace worn seals before they cost time on site. Professional-grade gauges provide their best value when the supporting accessories are treated to the same standard.

The fastest technicians are rarely the ones who rush the readings. They are the ones who set up cleanly, verify the conditions and know when a number is telling them to check something else. That discipline turns a digital manifold from an expensive display into a reliable commissioning and diagnostic tool.
