How to Detect Refrigerant Leaks on HVAC Jobs

A system that is low on charge is not automatically a system with a leak, but it should be treated that way until proven otherwise. Knowing how to detect refrigerant leaks efficiently protects the customer’s equipment, prevents repeat call-backs and keeps refrigerant handling compliant. The goal is not simply to find a suspicious spot. It is to locate the leak, confirm it, repair it properly and prove the circuit is tight before charging.

For working technicians, the best approach is a staged process. Start with the faults that reveal themselves quickly, then move to controlled pressure testing and electronic detection. That sequence saves time compared with chasing every joint using one method alone.

Start with the system history and a visual inspection

Before connecting gauges, ask what changed. A recent install, poor cooling complaint, oil staining below an indoor coil, repeated low-pressure lockouts or a system that has needed top-ups are all useful clues. A system that has been opened for repair may have a disturbed flare, service valve core or Schrader connection. A unit that has run for years without issues may be more likely to have corrosion at a coil, vibration damage or rubbed pipework.

Inspect the complete refrigerant circuit, not just the outdoor unit. Check flare nuts, brazed joints, service ports, valve caps, filter driers, distributors, accumulator connections, capillary or TXV areas, indoor coil bends and outdoor coil return bends. Look for oil residue, dirt stuck to an oily surface, green corrosion on copper, damaged insulation and line sets rubbing against metalwork.

Oil is a lead, not proof. Refrigerant oil can remain from an earlier service, and rain or condenser wash can move it away from the actual leak point. Clean the suspect area before testing so fresh evidence is easier to identify.

How to detect refrigerant leaks with a controlled test sequence

Leak detection is more reliable when the system is isolated, recovered where required and pressure-tested with dry nitrogen. Do not use refrigerant as a pressure-test gas and never vent refrigerant to atmosphere. Australian refrigerant handling rules require appropriate licensing and recovery practices, and they are part of professional work, not an optional extra.

Pressure test with dry nitrogen

Pressure testing establishes whether the circuit is holding before it tells you exactly where the leak is. Follow the equipment manufacturer’s pressure limits and account for the refrigerant type, component ratings and ambient temperature. A split system and a commercial rack circuit do not call for the same test pressure or test duration.

Use a regulated nitrogen setup with a reliable gauge or digital manifold. Bring pressure up gradually and allow the system to stabilise. A small change immediately after pressurising can be temperature equalisation, especially where a line set has been sitting in direct sun. Record the pressure and ambient temperature, then return after a suitable stabilisation period. A meaningful pressure drop under stable conditions points to a leak.

For difficult faults, isolate sections where practical. Separating the outdoor unit, line set and indoor coil can cut a long search down to one circuit section. It also prevents an expensive coil replacement based on guesswork.

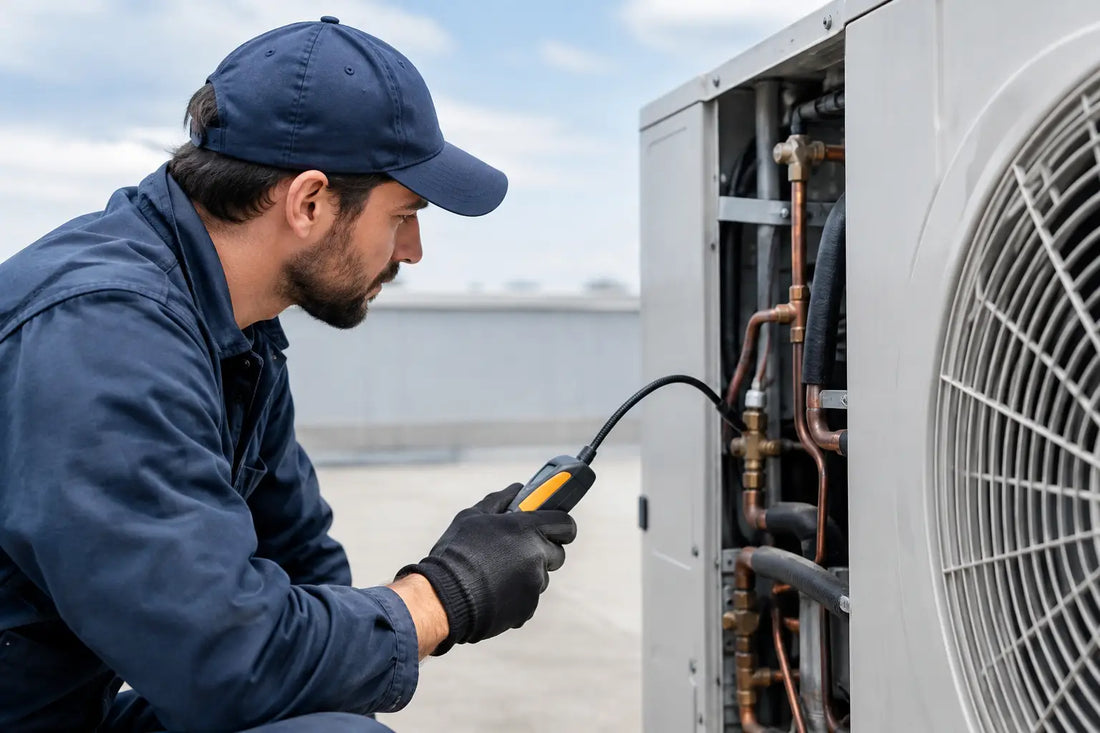

Use an electronic leak detector correctly

An electronic detector is one of the fastest tools on a service call, but only when it is used methodically. Use a detector rated for the refrigerant families you service and confirm its sensitivity and sensor condition before starting. A flat battery, contaminated sensor or detector that has not been zeroed can create wasted time.

Sweep slowly, generally no faster than 25 to 50 mm per second, with the probe close to the test area. Move from the top of a fitting to the bottom where possible, because refrigerant behaviour and airflow around the component can affect the reading. Keep the probe out of strong wind, condenser discharge air and direct fan wash.

When the detector responds, pull away, allow it to clear, then repeat the same pass from another angle. A genuine indication should be repeatable. If you are working around a service port, fit or replace the cap after checking the core. Valve caps with sound seals are a secondary barrier, not decoration.

Electronic detection is particularly useful around crowded outdoor units, concealed pipe connections and coil faces. It can struggle where residual refrigerant is present in the air, where chemical cleaners have been used or where oil and grime are widespread. Ventilate the area, clean the surface and retest rather than trusting a single alarm.

Confirm with bubble solution

Bubble solution remains one of the best confirmation methods for accessible joints and fittings. Apply a purpose-made solution generously to the suspected location while the circuit is under safe test pressure. Watch for a stable, growing bubble formation. Foaming caused by application or movement is not the same as a leak.

This method works well on flare nuts, brazed connections, valve cores and accessible coil joints. It is less practical across an entire microchannel coil, dense fin pack or inaccessible ceiling-cassette connection. In those situations, pair electronic detection with isolation and pressure decay results.

Avoid washing the evidence away too quickly. If a fitting bubbles, mark it, photograph it if your job records require it and inspect the cause before reaching for spanners or a torch. A flare may be cracked, over-tightened, misaligned or made on damaged tube. Tightening a failed flare without remaking it may stop the symptom briefly, but it is not a dependable repair.

Common leak points worth checking first

Most leak searches are won or lost by checking likely locations before spending an hour on a coil. On split and ducted systems, start at flare connections, service valves, Schrader cores, line set rub points and indoor unit connections. On refrigeration equipment, include vibration-prone discharge lines, receiver connections, drier joints, pressure controls and condenser coil areas exposed to corrosion.

Do not overlook installation workmanship. Poor tube preparation can create leaks that take months to show up. Burrs left after cutting, an uneven flare, incorrect flare depth, contaminated copper and unsupported pipework all affect sealing quality. This is where precise tube cutters, reamers, cordless flaring tools and proper benders pay for themselves - they improve repeatability before the system ever sees pressure.

Coils need a different mindset. Aluminium-to-copper transitions, corrosive environments, formicary corrosion and physical impact may produce leaks too small to show obvious oil. If the electronic detector repeatedly points to the coil and isolated pressure testing supports it, a thorough coil inspection is justified. Do not condemn a coil purely because the system is low on charge.

Repair first, then prove the repair

Once the leak is confirmed, recover any remaining refrigerant using compliant equipment before opening the circuit. Repair the actual fault rather than applying a temporary fix. That may mean replacing a valve core, remaking a flare, re-brazing a joint, replacing a damaged section of copper or changing a failed component.

After the repair, repeat the nitrogen pressure test. This second test is not a formality. It confirms the repair has held and checks that heat or movement during the repair has not created another issue nearby. Recheck the repair with bubble solution or an electronic detector while under pressure.

Only then should evacuation begin. A quality dual-stage vacuum pump and a micron gauge give a more meaningful indication of dehydration and system tightness than manifold readings alone. Pull to the required vacuum, isolate correctly and monitor the rise. A rapid rise can indicate a remaining leak, trapped moisture or a testing setup problem. Diagnose the reason rather than charging and hoping operating pressures will tell the story.

Once the system passes pressure testing and evacuation, charge by the manufacturer’s specified method. For many modern systems, especially inverter equipment and refrigerant blends, charging by weight is the controlled method. Record the refrigerant type, charge amount, repair completed, test pressure and final operating checks. Clear records protect your business and make the next service visit faster.

Match the tool to the fault

There is no single leak detector that replaces good process. A digital manifold helps document pressure changes. A nitrogen regulator provides controlled test pressure. An electronic detector narrows the search. Bubble solution confirms accessible points. A micron gauge verifies the evacuation stage after repair. Each tool answers a different question.

For technicians building a dependable field kit, choose professional-grade equipment that is accurate, serviceable and suited to the refrigerants in your regular workload. AC Direct focuses on the vacuum, gauge and copper-working tools that support this sequence from installation through to fault finding.

The fastest leak search is usually the one performed without assumptions: inspect carefully, test in sections, confirm the indication and prove the repair before putting refrigerant back into the circuit.
