How to Calculate Refrigerant Superheat Correctly

A suction line that feels unusually warm or sweats back to the compressor tells you something is happening, but it does not tell you why. Knowing how to calculate refrigerant superheat gives you a repeatable field reading you can use to assess evaporator feed, airflow and system charge without relying on guesswork.

Superheat is one of the core commissioning and diagnostic measurements on vapour-compression systems. Taken correctly, it shows how far the refrigerant vapour has been heated above its saturation temperature at a given pressure. Taken poorly, it can send a technician chasing a charge fault that is actually caused by low airflow, a dirty coil, a restriction or a metering device issue.

What refrigerant superheat tells you

Refrigerant leaving an evaporator should be fully vapour before it enters the compressor. The amount of sensible heat added after the final liquid refrigerant has boiled off is superheat. It is expressed as a temperature difference in degrees Celsius.

The calculation is straightforward:

Superheat = actual suction line temperature - saturated vapour temperature

The actual line temperature comes from a properly secured pipe clamp or thermocouple. The saturated vapour temperature comes from the suction pressure, converted with a pressure-temperature chart, digital manifold or approved refrigerant app. Both values must relate to the same refrigerant and, ideally, the same point in the system.

A reading of 8°C superheat means the suction vapour is 8°C warmer than its boiling, or saturation, temperature at the measured pressure. That does not automatically mean 8°C is correct. The acceptable target depends on the equipment design, metering device, load conditions and manufacturer instructions.

Tools required for an accurate reading

Start with gauges that resolve pressure reliably for the refrigerant in the system and a temperature probe that makes firm contact with clean copper. A digital manifold with built-in PT data reduces chart lookup errors, while a quality clamp probe gives faster, more repeatable line-temperature readings than an improvised contact method.

You will also need to identify the refrigerant before connecting anything. Using an R-410A saturation scale on an R-32 system, or selecting the wrong blend setting on a digital gauge, makes the final calculation useless. Confirm the refrigerant from the unit data plate and check that your manifold or PT reference supports it.

For field work, insulation matters. A clamp sitting on an uninsulated suction line in direct sun or beside a hot condenser can read high. Shield the probe from ambient influence, insulate over the clamp where practical and allow the reading to settle.

How to calculate refrigerant superheat in the field

1. Get the system to stable operating conditions

Run the system long enough for pressures and temperatures to stabilise. The required time varies with system size, indoor load and outdoor conditions, but a reading captured immediately after start-up is rarely useful.

Set the airflow first. On ducted equipment, confirm filters, blower operation, return air and supply restrictions before evaluating superheat. On refrigeration equipment, verify evaporator fans, defrost status, case load and coil condition. Superheat is a system response, so it will move when airflow or load changes.

2. Measure suction pressure at the relevant point

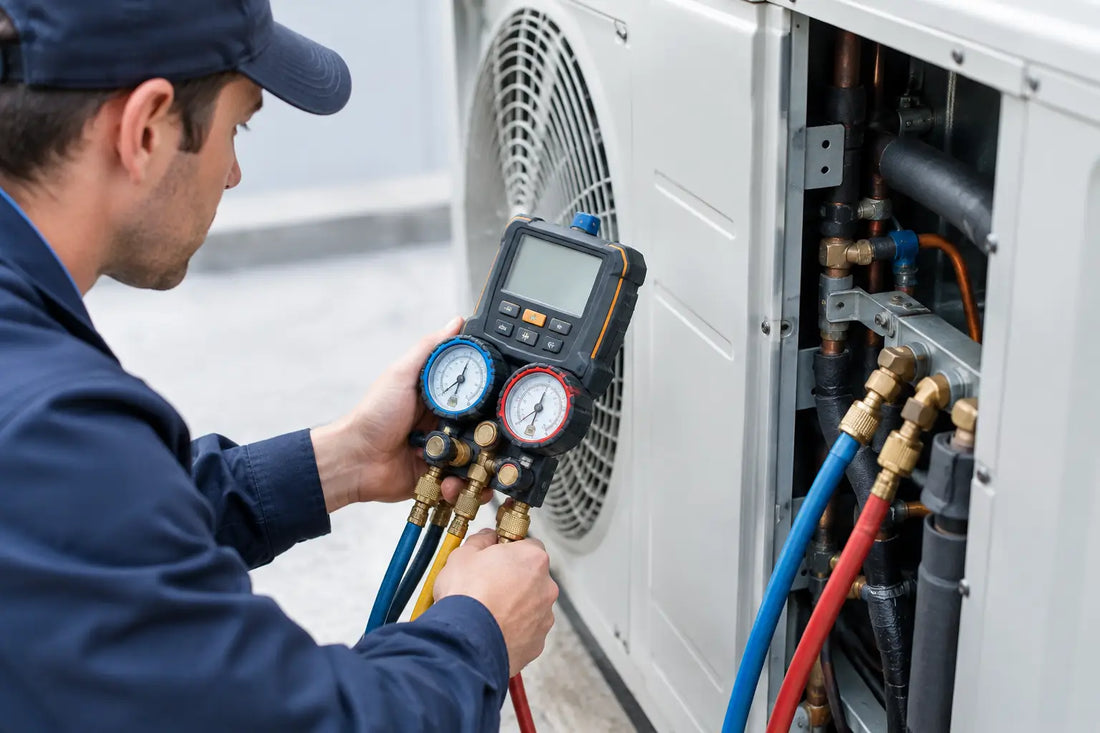

Connect to the low-side service port using hoses and procedures that minimise refrigerant loss. Record the suction pressure once it is stable.

Where you measure matters. A service port near the condensing unit gives you pressure at that point, not necessarily at the evaporator outlet. On a long suction run, pressure drop can be significant enough to alter the result. For a practical total-superheat check, measure suction pressure and line temperature together at the outdoor service valve. For evaporator superheat, measure as close to the evaporator outlet as access and the equipment design allow.

Do not combine a pressure reading from one end of a long line set with a temperature reading from the other. The maths may be correct, but the diagnostic conclusion may not be.

3. Convert pressure to saturated vapour temperature

Use the selected refrigerant’s PT chart or your digital manifold to convert suction pressure into saturated vapour temperature. This is the temperature at which the refrigerant is boiling at that pressure.

For refrigerant blends with temperature glide, use the dew-point saturation temperature when calculating superheat. Dew point represents the vapour side of the blend. Bubble point is used on the liquid side for subcooling. Selecting the wrong value can create a misleading result, particularly with higher-glide refrigerants such as R-407C.

4. Measure the actual suction line temperature

Attach the clamp probe firmly to a clean section of suction line close to the pressure measurement point. Avoid fittings, oil traps, accumulator shells and locations influenced by an adjacent hot line. A straight copper section is best.

Wait until the temperature reading settles, then record it. If the line is insulated, refit or pull the insulation over the clamp to reduce heat gain from surrounding air. A loose clamp can easily add several degrees to the result.

5. Subtract saturation temperature from line temperature

Subtract the saturated vapour temperature from the measured suction line temperature.

For example, assume an R-410A system has a stable suction pressure that corresponds to a saturated vapour temperature of 4°C. Your clamp probe reads 12°C on the suction line at the same location.

12°C actual line temperature - 4°C saturation temperature = 8°C superheat

Because superheat is a temperature difference, a change of 1°C equals a change of 1 K. What matters is using accurate readings and applying the manufacturer’s target for that system.

Evaporator superheat versus total superheat

These two readings are related but not interchangeable. Evaporator superheat is measured at the evaporator outlet and indicates how the coil and metering device are feeding. Total superheat is measured at the compressor inlet or outdoor suction service valve and includes any heat picked up through the suction line.

On a split system, total superheat is often higher than evaporator superheat because the vapour absorbs heat as it travels through the line set. That extra heat may be normal. It should not be treated as evidence that the evaporator is underfed without considering line length, insulation, ambient conditions and pressure drop.

For a system using a fixed orifice or capillary device, total superheat is commonly used as part of the charging procedure, usually alongside an approved target chart that accounts for indoor wet-bulb and outdoor dry-bulb conditions. For a TX valve or electronic expansion valve system, charging is more commonly verified by subcooling, although superheat remains valuable for diagnosing evaporator performance and valve control.

Reading high and low superheat properly

High superheat generally means the evaporator is receiving less refrigerant than the load could boil off. Possible causes include low charge, a restricted filter-drier or liquid line, an underfeeding TX valve, a blocked distributor, low load or inadequate liquid supply to the metering device.

Low superheat means refrigerant is boiling off close to the evaporator outlet, leaving little vapour temperature margin. It can point to overfeeding, excessive charge in a fixed-orifice system, a TX valve issue, high airflow or an unusually high load. Very low or zero superheat raises floodback risk and needs prompt investigation.

Neither condition identifies a single fault by itself. A low suction pressure with high superheat may look like undercharge, but a restricted metering device or a starved evaporator from poor liquid feed can produce a similar pattern. Compare superheat with subcooling, suction and head pressure, airflow, coil temperatures, compressor amps and the unit’s specified charging method before adding or recovering refrigerant.

Common measurement mistakes that waste time

The most frequent error is using the wrong refrigerant PT scale. The next is measuring line temperature far from the pressure point. Other avoidable problems include reading before stabilisation, clamping onto a dirty or oxidised pipe, allowing sun or condenser discharge air to heat the probe, and ignoring blend dew-point selection.

Gauge accuracy also matters. A small pressure error near typical evaporating conditions can translate into a meaningful saturation-temperature error. Professional digital gauges, sound hoses and calibrated temperature clamps make the calculation quicker, but more importantly, they make repeated readings trustworthy.

When charging or recovering refrigerant, follow manufacturer procedures, applicable Australian refrigerant-handling requirements and site safety controls. Superheat is a diagnostic measurement, not a reason to adjust charge without confirming the complete operating picture.

A clean superheat reading starts with matching pressure and temperature at the same location. Build that discipline into every commissioning and fault-finding job, and the numbers will point you towards the fault instead of away from it.
