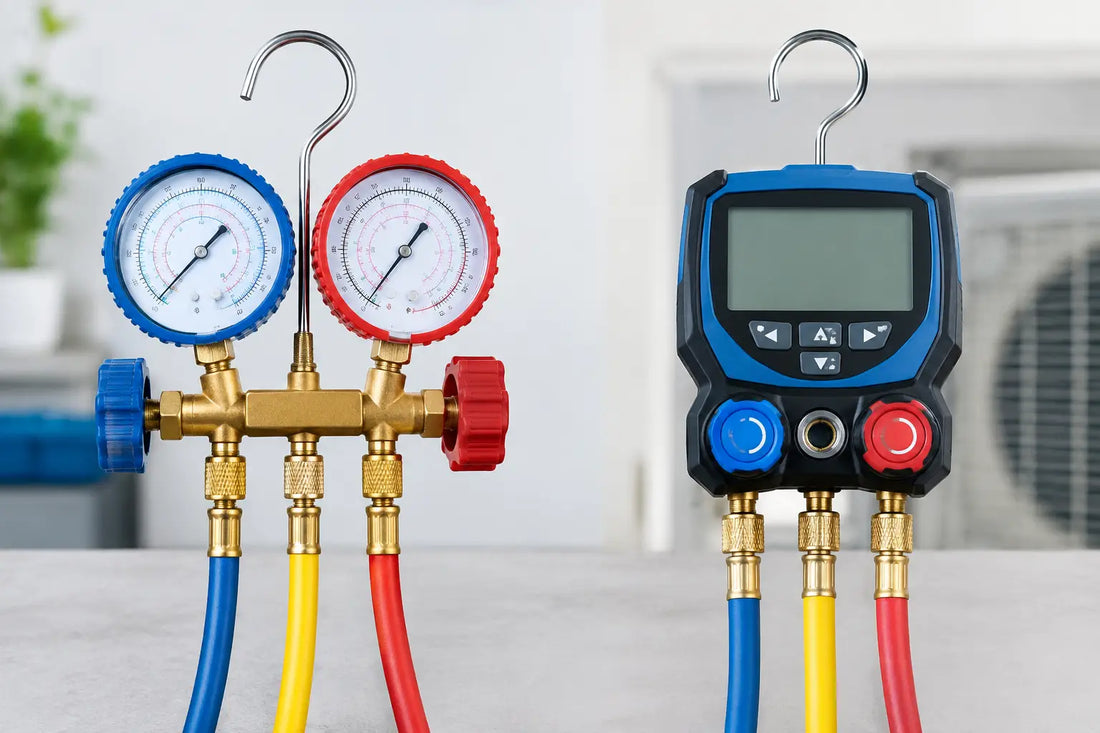

Digital Versus Analogue Manifold Gauges

A manifold set earns its place on the ute because it affects nearly every service decision: confirming system pressure, checking saturation, proving evacuation progress and charging accurately. The choice between digital versus analogue manifold gauges is not simply old school versus new. It is about the type of work on the day, the refrigerants in your service mix, and how much diagnostic information you need before you reach for a recovery unit or add charge.

For many technicians, an analogue manifold remains a dependable daily tool. For others, a digital manifold has become the faster route to dependable readings, calculated temperatures and job records. Both have a place in professional HVAC work when matched to the application.

Digital versus analogue manifold gauges: the working difference

An analogue manifold uses mechanical Bourdon-tube gauges to display suction and high-side pressure. It is direct, familiar and quick to read once you know the pressure-temperature relationship for the refrigerant in front of you. A well-built set has few electronic components, no battery to flatten mid-job and a straightforward format that stands up well to routine installation and maintenance work.

A digital manifold measures pressure through electronic sensors and displays it on a screen. Most professional units also include refrigerant selection, built-in pressure-temperature data, calculated saturation temperatures and connection points for temperature clamps. This turns a pressure reading into superheat and subcooling figures without manually cross-referencing a PT chart.

That distinction matters when diagnosis is the job. Pressure alone does not confirm whether a system has an airflow issue, a metering fault, an incorrect charge or a restriction. Digital equipment makes it quicker to compare readings and identify a pattern. It does not replace technical judgement, but it reduces the arithmetic and the chance of a transcription error.

When an analogue manifold is the better choice

Analogue gauges remain a practical choice for installers and service technicians who want a fast, durable tool for core pressure work. On a straightforward split-system installation, for example, a quality analogue manifold can handle pressure testing, charging support and basic operational checks effectively.

The dial gives an immediate visual picture. Many experienced technicians can see a needle moving, spot unstable pressure or notice a rapid equalisation without waiting for a digital display to settle. There is also no menu structure to work through when you are moving between jobs or dealing with a simple fault.

Analogue manifolds are generally more affordable, which makes them a sensible option for apprentices building a kit, contractors equipping multiple crews, or technicians who keep separate gauge sets for different refrigerant classes. A dedicated manifold reduces the risk of cross-contamination and keeps the workflow clean.

There are limits. Reading pressure accurately depends on the gauge scale, viewing angle and the condition of the mechanism. Calculating superheat and subcooling requires a temperature measurement plus a PT chart or separate calculation. On modern inverter systems, where operating conditions can change quickly, those extra steps take time.

Mechanical reliability still needs care

An analogue set is not maintenance-free. Damaged hoses, leaking valve seats, sticky needles and gauges knocked out of calibration can lead to poor decisions just as readily as a faulty sensor. Protect the set in transit, keep the faces clean, inspect hoses and seals, and verify zero before use. If a needle does not return to zero with the system disconnected, do not treat it as a reliable reference.

Where digital manifolds earn their cost

Digital manifolds suit technicians who regularly commission, fault-find and document work across several refrigerants. Select the refrigerant, connect temperature clamps where required, and the instrument can show saturation temperatures, superheat and subcooling in a format that is easy to compare against manufacturer requirements.

The speed benefit is real on a busy service run. Instead of moving between gauges, a PT chart and a calculator, the technician can focus on system behaviour. That is especially useful when checking charge on equipment with a specified subcooling target, diagnosing comfort complaints, or verifying performance after a repair.

Many digital models provide additional functions such as vacuum display, data logging, wireless connectivity or a mobile app. These features can help where job documentation is part of the contract, where a senior technician needs to review readings from site, or where recurring faults need evidence rather than memory.

Precision is another advantage, but it should be understood correctly. A digital screen may show more decimal places than an analogue dial, yet the useful accuracy still depends on sensor specification, calibration, hose condition and proper connection. More digits do not automatically make a reading more meaningful.

Digital tools have field trade-offs

Digital manifolds cost more and rely on charged batteries, protected screens and functional sensors. Keep spare batteries or a charging lead in the vehicle, and use a protective case rather than letting the manifold rattle around with flaring tools and tube cutters.

They also require familiarity. A technician who does not set the correct refrigerant, pressure units or temperature inputs can obtain a neat-looking but incorrect result. Before commissioning, confirm the refrigerant selection and check that clamps are fitted securely to clean copper with suitable insulation from ambient air.

Not every digital manifold is equally suitable for every refrigerant or pressure range. Check the compatible refrigerant list, maximum working pressure, accuracy specification, hose fittings and whether the tool supports the functions required for your usual work. A multi-refrigerant model is valuable only if it covers the systems you service.

Choose by task, not by fashion

The right manifold depends on how the set will be used. Installation crews carrying out repeatable residential split-system work may value the simplicity, lower cost and toughness of an analogue manifold. A quality set paired with accurate temperature probes and disciplined charging procedures can produce professional results.

Service contractors working across ducted, commercial and refrigeration equipment will often gain more from digital capability. Faster calculation is useful when each call presents a different refrigerant, control strategy or fault condition. The ability to record readings also supports clearer communication with clients and a stronger service history.

For evacuation, consider whether a manifold is the best measurement tool at all. A dedicated micron gauge placed at the system gives a more meaningful indication of vacuum quality than relying on a compound gauge. Pulling a deep vacuum, isolating the system and watching for a stable result is the standard that matters. The manifold still has a role in the workflow, but it should not be asked to do the micron gauge's job.

Likewise, avoid using a manifold where core removal tools, low-loss fittings or direct connections would reduce restrictions and refrigerant loss. Good tools work together. The goal is not to connect every gauge available, but to take the measurements needed while protecting the system charge and maintaining clean procedures.

Accuracy starts before the gauges go on

Whether the set is digital or analogue, reliable readings begin with the basics. Confirm the system refrigerant from the unit data plate. Inspect service ports and Schrader cores. Purge hoses correctly where appropriate, use low-loss fittings, and make sure hoses rated for the refrigerant and pressure are in sound condition.

Measure temperatures at the right location and account for operating conditions. Return air, outdoor ambient, airflow, coil cleanliness and compressor speed all affect what the gauges show. A pressure reading outside an expected range may be a charge issue, but it may also point to poor airflow, a dirty condenser, a failed fan, a restricted filter-drier or a control problem.

That is why a manifold should support diagnosis rather than dictate it. Compare readings against the manufacturer procedure, particularly on inverter-driven equipment. Factory charge by weighed-in refrigerant remains the correct approach after a repair or when the system has been opened, unless the manufacturer specifies another method.

A practical buying decision

Buy an analogue manifold if you need a dependable, uncomplicated pressure tool for frequent installation work and basic checks. Choose a digital manifold if calculated values, multiple refrigerants, fault-finding speed and documentation will improve the way you service equipment. Many established technicians keep both: an analogue set for fast everyday work and a digital set for commissioning and deeper diagnosis.

At AC Direct, the better choice is the one that matches the job, the refrigerants on your books and the standard of measurement your customers expect. Select professional-grade gauges, protect them from contamination and damage, and use them with sound evacuation, charging and testing procedures. A manifold is only one part of the kit, but used properly, it helps turn a set of readings into a confident service decision.
