Best Tools for Nitrogen Testing in HVAC Work

A pressure test only means something when the tools controlling and reading that pressure are up to the job. For refrigeration and air-conditioning technicians, the best tools for nitrogen testing are not a single gauge set or a bottle regulator. They are a matched setup that lets you introduce dry nitrogen safely, reach the required test pressure gradually, isolate the system, and identify a real pressure loss without guessing.

This is nitrogen pressure testing for pipework and refrigerant circuits, not testing nitrogen concentration. The objective is straightforward: prove the integrity of a system before evacuation and charging. The execution needs more care. A poor regulator, a damaged hose seal or a gauge with questionable accuracy can turn a clean installation into an unnecessary callback.

Start with the right nitrogen source

Use dry nitrogen intended for refrigeration work, commonly referred to as oxygen-free nitrogen or OFN. It is dry, inert and suitable for pressure testing copper lines, coils and other refrigeration components. Never use oxygen, compressed air or workshop air for pressure testing a refrigerant system. Oxygen and oil contamination create serious safety risks, while compressed air introduces moisture that has no place in a system headed for deep evacuation.

The cylinder needs to be secured upright during use and transport. It sounds basic, but a loose cylinder in a van or on a site is not a minor issue. Check the cylinder valve, connection and regulator threads before starting. If a fitting is damaged or contaminated, take it out of service rather than forcing a seal.

The essential tools for nitrogen pressure testing

A dependable setup has several parts, each with a specific job. Buying professional-grade equipment is less about adding features and more about having predictable control at every stage of the test.

Adjustable nitrogen regulator

The regulator is the foundation of the job. Choose a purpose-built nitrogen regulator with a clear outlet-pressure gauge, smooth adjustment and a pressure range appropriate for the systems you service. It should let you bring pressure up progressively rather than dumping high pressure into the circuit in one hit.

Look for solid gauge protection, an easy-to-read scale and fittings compatible with your nitrogen cylinder and charging hoses. A regulator with a shut-off valve at the outlet makes isolation easier when you need to hold a test pressure. For technicians moving between split systems, VRF work and commercial refrigeration, a higher-capacity regulator provides more flexibility, but only if the gauge remains readable at the lower pressures you use every week.

Do not confuse regulator capacity with the pressure rating of the system under test. The allowable test pressure comes from the equipment manufacturer and applicable requirements, not from the maximum number printed on the regulator dial.

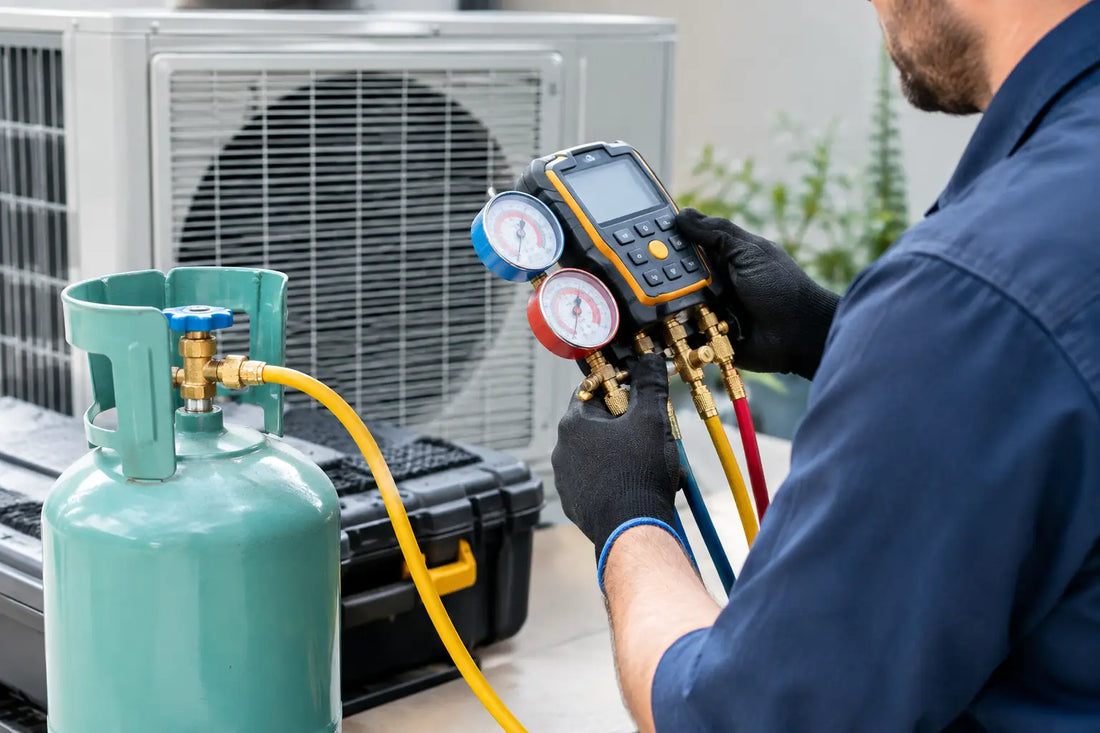

Digital manifold gauge set

A quality digital manifold is one of the best upgrades for technicians who need repeatable readings and a clear pressure record. It can display pressure with finer resolution than many analogue dials and can make it easier to see whether a system is genuinely stable after temperature equalisation.

For nitrogen testing, select a manifold rated for the pressure range involved and compatible with the refrigerants and oils encountered in your day-to-day work. Strong valves, protected sensors and reliable ports matter more than a long feature list. If your manifold supports data logging, that can be useful on commercial work where commissioning records are required, but it does not replace sound leak-checking practice.

Analogue manifolds still have a place. They are familiar, quick to deploy and durable when looked after. Their limitation is resolution. On a critical pressure hold, a digital gauge or dedicated high-accuracy pressure gauge gives more confidence than trying to judge a small needle movement across a broad scale.

Dedicated high-pressure test gauge

Where accuracy is the priority, fit a dedicated pressure gauge close to the circuit rather than relying entirely on the regulator gauge. Regulator gauges are useful for setting pressure, but they are not always the best reference for confirming what is happening at the system.

A quality digital test gauge can be connected at a service port, core tool or manifold position and left to stabilise with the pipework. Choose one with a suitable pressure rating, good resolution and calibration support. It should be protected from knocks in the tool bag and checked against a known reference at sensible intervals.

This extra gauge is particularly worthwhile on long line sets, multi-zone installations and commercial jobs where a small leak can cost hours later. It also helps separate a pressure change caused by temperature movement from one caused by a leaking joint.

Rated charging hoses and low-loss fittings

Hoses are often the weak point in an otherwise professional test setup. Use charging hoses rated above the maximum pressure you may apply, with sound gaskets, secure crimps and fittings that do not bind. Inspect them often. A flattened seal or leaking depressor can mimic a system leak and waste time on site.

Low-loss fittings and quality ball valves help when isolating the system and disconnecting after a hold test. They reduce gas loss and keep the process cleaner. For tighter access around condensers or branch joints, angled adaptors can make the connection more practical, provided every fitting is pressure rated.

Use a core removal tool where it makes sense. Removing the Schrader core improves flow during evacuation later, but it can also provide a controlled connection point during testing. Make sure the tool itself is rated for the pressure being used and that its seals are in good condition.

Leak detection tools that confirm the result

Pressure testing tells you there may be a leak. It does not always tell you where it is. A quality bubble solution remains one of the fastest tools for finding leaks at flare nuts, brazed joints, service valves and accessible fittings. Apply it generously enough to form a film, then give it time. Tiny leaks can take longer to show than a rushed check allows.

An electronic leak detector is valuable for final checks and awkward locations, especially when used with an approved trace-gas method. Follow the detector manufacturer’s instructions and the site procedure. Do not treat an electronic detector as a substitute for pressure stability or visual inspection. It is another confirmation tool, not a shortcut.

For concealed pipework, test access should be planned before walls, ceilings or outdoor units restrict the job. The best leak detector cannot inspect a joint that is buried without service access.

How to build a reliable test setup

Connect the nitrogen regulator to the secured cylinder, then connect the rated hose and manifold or dedicated test gauge to the system. Keep valves closed until you are ready to introduce pressure. Purge the hose connection carefully in accordance with your work procedure so you are not adding unnecessary air to the circuit.

Bring the pressure up in stages. Stop and listen after the initial charge. Check accessible connections with bubble solution before moving to the specified test pressure. This staged approach is faster than fully pressurising a system with an obvious open flare or loose service connection.

Once the required pressure is reached, isolate the cylinder from the circuit and allow the system to stabilise. Temperature changes affect pressure. Pipework warmed by sun, a plant room cooling down, or a system moved from a hot ute tray to an air-conditioned building can all shift the reading. Record the pressure, time and ambient conditions where the job calls for it, then assess the hold after the pipework has had time to equalise.

If pressure drops, first rule out your test rig. Check hose ends, manifold valves, adapters, service ports and the regulator connection before condemning the installation. A controlled re-test with a dedicated gauge often saves unnecessary rework.

Choosing the right kit for your workload

For regular residential split-system work, a reliable adjustable regulator, rated hoses, a digital manifold and quality bubble solution cover most testing needs. A compact kit that packs quickly and survives daily transport is usually the best investment.

For commercial refrigeration, VRF and larger installation work, add a dedicated high-pressure digital gauge, isolation valves and a better record-keeping process. The larger the circuit and the higher the cost of a return visit, the more value there is in measurement accuracy and documented results.

Tool selection should also match the refrigerants and equipment you see most often. Check pressure ratings, port compatibility and manufacturer specifications before applying nitrogen. Never use a generic pressure figure across every system.

AC Direct focuses on the tools that support professional installations: gauges, vacuum equipment, hose and connection hardware built around practical field work. The right nitrogen test setup sits naturally beside a quality vacuum pump and manifold set because commissioning is only as reliable as the steps before charging.

A clean pressure hold is not the finish line. Release nitrogen safely, evacuate with properly maintained vacuum equipment, verify the evacuation, and only then charge and commission the system. That disciplined sequence protects the installation, the refrigerant charge and your reputation long after the job is packed down.
