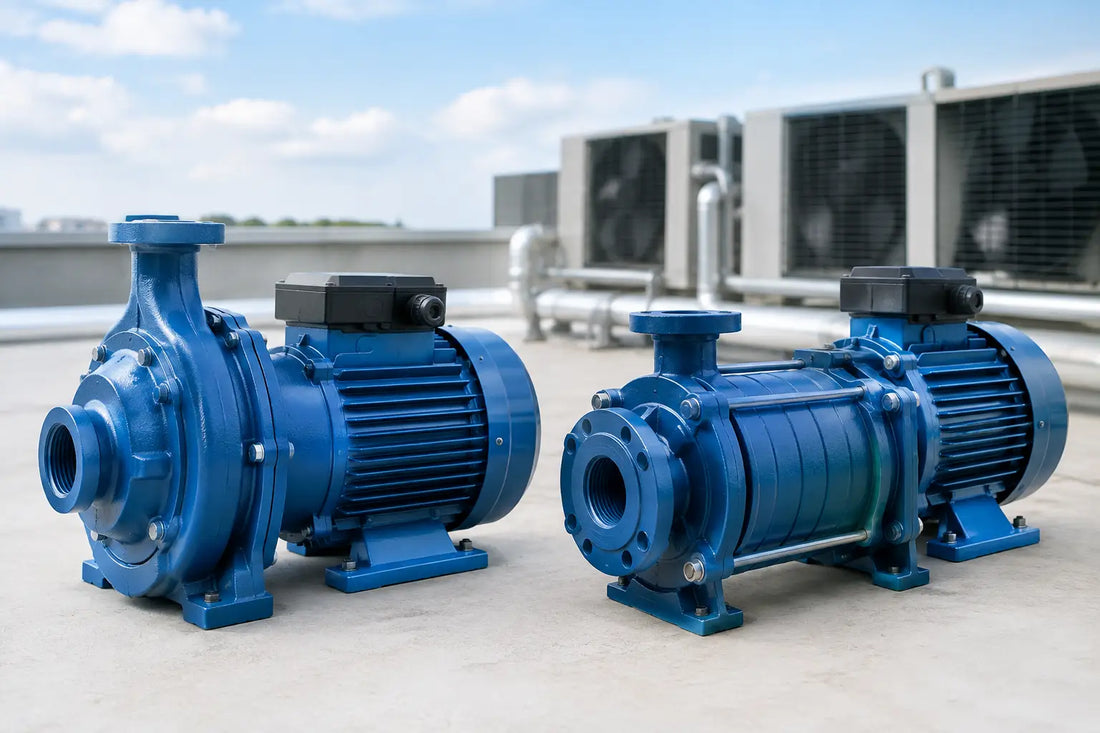

Single Versus Dual Stage Pumps for HVAC Work

A vacuum pump that stalls above the target micron level can turn a straightforward commissioning job into a return visit. When comparing single versus dual stage pumps, the practical question is not which design sounds better on paper. It is whether the pump can pull and hold the vacuum required for the system, refrigerant, job conditions and standard of work you put your name to.

For most professional split-system, ducted and refrigeration work, a quality dual-stage pump is the stronger all-round choice. That does not make a single-stage pump useless. It means the right decision comes down to evacuation depth, system size, moisture risk, expected duty cycle and the rest of the evacuation setup.

What a vacuum pump stage actually does

A vacuum pump removes air, non-condensables and moisture vapour from a sealed refrigeration circuit before refrigerant is introduced. The aim is not simply to make gauges show a vacuum. The aim is to establish a deep, stable vacuum that confirms the system is dry and tight enough for commissioning.

A single-stage pump uses one compression cycle to move gas from the inlet through to the exhaust. It is a simpler design and can achieve a useful vacuum for selected applications, particularly where service demands are light and the required ultimate vacuum is modest.

A dual-stage pump runs the gas through two compression stages. The first stage handles the initial volume of air, while the second stage continues working at lower pressure. This arrangement generally gives a lower ultimate vacuum and better performance as the system moves into deep evacuation territory.

That lower ultimate vacuum matters because water behaves differently under vacuum. As pressure falls, moisture evaporates at a lower temperature. A pump capable of reaching a deeper vacuum gives the evacuation process more headroom to remove moisture from the circuit, provided the hoses, connections and system condition are up to standard.

Single versus dual stage pumps in field conditions

The difference between single versus dual stage pumps becomes clear once the job is more demanding than a clean, short line set on a mild day.

A single-stage pump may suit occasional light service work, small sealed systems or situations where deep evacuation requirements are limited. It can also be a practical lower-cost option for a technician who needs a compact backup pump. Fewer internal stages can mean a simpler unit to maintain, although build quality, oil condition and servicing still determine how well it performs.

For regular installation and commissioning work, a dual-stage pump gives a wider operating margin. It is better suited to pulling deeper vacuums on split systems, multi-head installations, longer pipe runs and commercial equipment. It is also the more sensible choice when moisture exposure is possible after a repair, a component replacement or an extended period with the system open.

A dual-stage design does not automatically evacuate every system twice as fast. Pull-down time is often controlled by restrictions elsewhere in the setup: undersized hoses, Schrader cores left in place, restrictive manifolds, poor fittings or a leak. Pump capacity and evacuation conductance matter just as much as the number of stages.

The advantage is that a good dual-stage pump can keep working efficiently at lower pressures, where proper evacuation work matters most. That makes it easier to reach a dependable micron target and verify that the vacuum holds during isolation.

Deeper vacuum is only useful when you can measure it

A compound gauge reaching below zero is not proof of a complete evacuation. It shows that the system is below atmospheric pressure, but it cannot provide the accuracy needed to assess a deep vacuum. A micron gauge is the tool that tells you where the system actually sits.

Set the micron gauge at the system rather than directly at the pump where practical. This gives a more meaningful reading by accounting for pressure drop through hoses and fittings. Remove valve cores with a core-removal tool, use large-diameter vacuum-rated hoses and keep the path between the pump and system as unrestricted as possible.

Once the target is reached, isolate the pump and watch the reading. A rapid rise can point to a leak, trapped moisture or outgassing. A slow change may be normal as temperatures equalise, but it still requires judgement. No dual-stage pump can compensate for a leaking flare, contaminated oil or a poor evacuation setup.

For professional installers, this is why pump choice should be considered alongside digital vacuum measurement. The pump creates the conditions. The micron gauge verifies the result.

Choose pump capacity for the work you actually do

Stage count is only one part of pump selection. Capacity, usually expressed as CFM, has a direct effect on how much air the pump can move during the early part of evacuation. A larger-capacity pump can be valuable on larger residential systems, commercial splits, longer runs and jobs where time on site needs to be controlled.

More CFM is not always better if the rest of the setup is restrictive. A high-capacity pump connected through narrow charging hoses and a manifold with cores installed will not deliver its full potential. In many cases, upgrading hoses, using core-removal tools and connecting directly to suitable service ports makes a major difference to evacuation speed.

A compact pump remains useful for smaller systems, service vans with limited space and technicians who prioritise portability. Larger pumps suit crews carrying out repeated installations or working on bigger equipment, provided the unit is built for transport and daily use.

Consider the pump as part of a working kit. Weight, handle design, power supply, oil sight glass visibility, drain access and the availability of replacement parts all affect whether it performs well in the field. A pump that is awkward to drain or easy to knock over in the back of the ute is less likely to receive the care it needs.

Oil condition decides pump performance

Vacuum pump oil is not a minor maintenance item. It seals internal clearances, lubricates moving parts and helps the pump reach its rated vacuum. Oil that is cloudy, milky or visibly contaminated can limit vacuum performance and increase internal wear.

Change the oil regularly, and change it immediately after a job where it has absorbed moisture or contaminants. Letting a pump run on degraded oil is a false economy, especially when it leads to longer evacuation times and questionable commissioning results.

Run the pump with the gas ballast open when the manufacturer recommends it during the early moisture-removal phase, then close it to pull deeper once vapour levels reduce. Follow the specific instructions for your pump, as valve positions and procedures vary by model.

Keep the inlet capped during storage, transport the pump upright and check that fittings and seals remain clean. Good pump maintenance protects the investment, but more importantly, it keeps your evacuation process repeatable from one job to the next.

When a single-stage pump is the right call

A single-stage model can make sense for a technician with occasional low-demand work, for a dedicated backup unit or for applications where its rated ultimate vacuum meets the required procedure. It may also appeal where upfront cost and portability outweigh the benefits of deeper evacuation performance.

The limitation is reduced flexibility. If your work includes new air-conditioning installations, refrigerant circuit repairs, longer pipe runs or systems where moisture control is critical, a single-stage pump can quickly become the bottleneck. Buying once for the work you want to take on is often more cost-effective than replacing an underspecified pump after a season.

Why dual-stage pumps suit professional HVAC work

For daily HVAC and refrigeration work, a professional dual-stage pump provides the performance margin most technicians need. It supports lower ultimate vacuum levels, handles a broader range of evacuation tasks and gives better confidence when paired with a proper micron gauge and low-restriction evacuation setup.

That does not remove the need for sound installation practice. Pressure test before evacuation, repair leaks before charging, use clean hoses and verify the standing vacuum. The pump is a critical part of the process, not a substitute for it.

AC Direct focuses on professional-grade vacuum and gauge equipment because installation quality is built from these details. Select a pump that suits your normal workload, maintain it properly and measure the evacuation at the system. That approach gives you faster decisions on site and fewer reasons to return after commissioning.
