How to Bend Copper Pipe Without Kinks on Site

A copper bend can look acceptable from one side, then reveal a flattened inside radius as soon as the line is rotated. On an HVAC installation, that is not a cosmetic issue. A kink or collapsed section restricts refrigerant flow, creates a weak point, and can turn a clean pipe run into rework. Knowing how to bend copper pipe without kinks comes down to matching the tube condition, size and bend radius with a proper bender.

For refrigeration work, a controlled bend is usually faster and cleaner than adding fittings. It reduces brazed joints, keeps the line set tidy and helps protect system performance. The key is not forcing the copper to follow your intended route. Support it correctly and let the tool form the radius.

How to bend copper pipe without kinks

Start with the right type of copper. Soft-drawn, annealed ACR copper is designed to be bent within reason. Hard-drawn copper is much less forgiving and should generally be cut and joined with the appropriate fittings rather than bent by hand. If the tube has been work-hardened by previous bends, straightening or repeated handling, replace that section instead of trying to rescue it.

Choose a bender that matches the outside diameter of the tubing exactly. A 3/8 in bender is not close enough for 10 mm tube, and a loose former will not fully support the tube wall. Professional lever benders, ratchet benders and hydraulic benders use a shaped former and retaining shoe to hold the copper through the bend. That support is what prevents the inside wall from buckling and the outside wall from thinning excessively.

Before placing the tubing in the tool, inspect it. The section being bent must be clean, round and free from dents. A small flat spot from transport, a clamp or a poor previous bend is often where a full kink begins. Cut out damaged material rather than positioning it inside the bend.

Mark the start of the bend and allow for the bend radius. A common mistake is measuring a straight-line route, then expecting the copper to turn sharply at the exact mark. Every bender has a centre-of-bend position and a former radius. Check the tool markings and make a test bend on an offcut when the routing is tight or the line set needs to land precisely at an outdoor unit, branch box or evaporator connection.

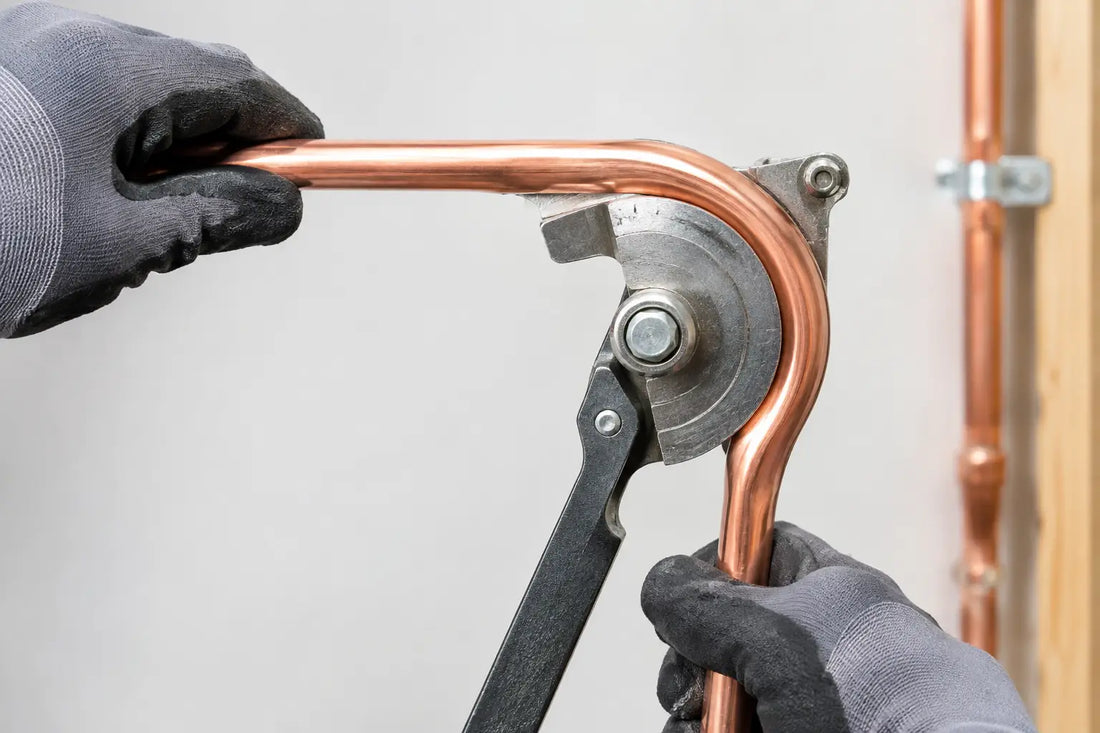

Seat the tube fully in the former, align your start mark with the tool’s reference point, and close the retaining hook or guide. Keep the copper square in the bender. If it is sitting at an angle, the bend can spiral instead of staying on one plane.

Apply steady pressure through one continuous movement. Do not jerk the handles, bend a few degrees, release, then start again repeatedly. Stop just short of the required angle and check the result. Copper has a small amount of springback, particularly in larger tube sizes, so a slight overbend may be needed. Make corrections in small increments. Trying to pull a bend back after overshooting is a reliable way to ovalise the tube.

When the bend is complete, release the guide carefully and inspect the full radius. The tube should remain round, with no wrinkle on the inside of the curve and no visible flattening. If the wall has started to collapse, do not install it because it still passes a quick visual check. Cut it out and remake the section.

Use the correct bender for the line size and job

A hand lever bender is the practical choice for common split-system and light commercial sizes where access is reasonable. It gives the technician direct control and is quick for repetitive bends. A quality bender with clear degree markings is particularly useful when building neat offsets and parallel suction and liquid lines.

Ratchet and hydraulic benders earn their place on larger-diameter tube or jobs requiring more force. They reduce physical effort and provide a smoother, more controlled pull through the former. They are not automatically better in every situation, though. In a cramped ceiling void or behind a plant room unit, a compact hand bender may be easier to position accurately.

Internal or external bending springs can help with small, soft copper tube, but they are not the first choice for professional refrigerant pipework. They offer less control over the final radius and can be difficult to remove once a tight bend has been made. For repeatable HVAC installation work, a purpose-built copper bender is the more dependable option. AC Direct’s copper bending range is aimed at this kind of controlled, field-ready pipe preparation.

Avoid using improvised methods such as bending over a knee, around a cylinder or across the edge of a bench. They may work on a generous radius with small annealed tube, but there is no consistent support at the critical inside of the bend. The cost of a proper tool is small compared with replacing refrigerant pipe, re-evacuating a system and returning to site.

Bend radius matters more than brute force

Every copper tube size has a practical minimum bend radius. The bender manufacturer’s specification should be your first reference because its former is designed around that radius. A larger radius is generally safer for the tubing and easier on the internal passage, especially on suction lines.

Tight bends are tempting where space is limited, but a fitting may be the better solution if the required turn is tighter than the bender allows. Forcing a bend below the tool’s rated radius creates wall thinning on the outside and compression on the inside. Even if it does not visibly kink, it may be compromised.

Plan the route before cutting the line. Consider unit clearances, service access, vibration isolation, insulation thickness and the direction of flare or braze connections. A bend that fits bare copper may no longer fit once insulation is installed. On insulated suction lines, make the bend first where possible, then slide or reinstate insulation without leaving gaps that can sweat.

For long vertical risers and roof runs, position bends so the tubing can be clipped and supported properly. Copper should not be held in place by the stress of a bend. Pipe supports control movement and vibration; the bender controls shape. Both matter to a durable installation.

The mistakes that cause kinks

Most kinks can be traced to one of four problems: unsupported tube, an undersized bend radius, unsuitable copper or rushed handling. The first is the most common. If the tube is not held tightly in the bender’s guide, it will try to slide instead of form around the former.

Another frequent issue is bending too close to a flare, swage, braze joint or tube end. Leave enough straight length for the bender to grip and support the copper. Trying to form a bend immediately beside a flare can distort the sealing surface and leave too little room for a torque wrench at the connection.

Cold conditions can also make a marginal bend more difficult. Keep coils protected from severe weather, avoid dropping them from the ute, and do not uncoil tubing aggressively. A coil that has been crushed or twisted before installation will not behave predictably in the bender.

Never try to repair a kink by squeezing it round, packing it with material or flattening the opposite side to make it look even. Refrigeration pipework needs a consistent bore and sound tube wall. Replace the affected length, then remake the bend with the correct tool and radius.

Build bends into a cleaner installation sequence

Good copper bending starts before the bender comes out. Measure the run, identify every change of direction and decide where fittings are genuinely needed. Cut the tube cleanly, ream it without pushing burrs into the line, then bend before final positioning where access allows. Keep open tube ends capped so dirt and moisture stay out of the system.

After bending, check the tube route against the equipment connections before flaring or brazing. This is the time to correct orientation, clearance and support spacing. Once the line has been connected, pressure-tested and insulated, a poor bend becomes much more expensive to fix.

A professional bend should look calm rather than forced: even radius, round tube, clear access to connections and enough support to keep the line stable for years. Take the extra minute to set the tube correctly in a matched bender. It protects the copper, reduces joints and gives the completed installation the standard your customer can see.
