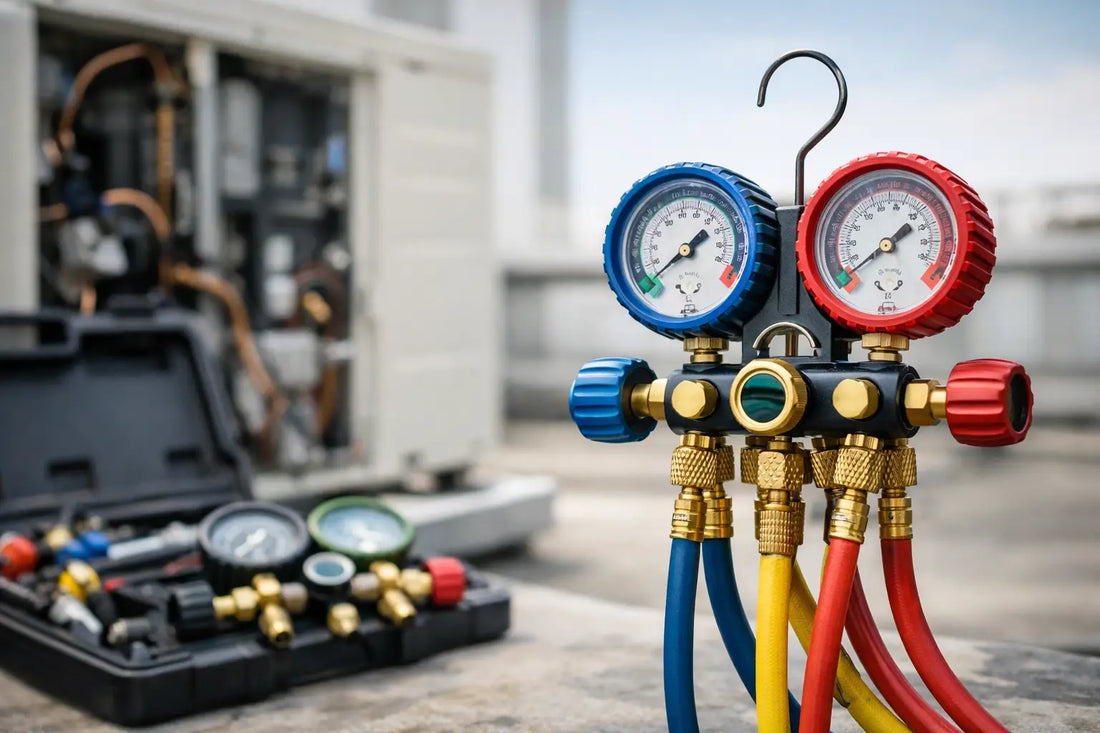

Choosing a Multi Refrigerant Manifold Set

A manifold that gives you the wrong refrigerant scale, drifts under pressure or makes evacuation checks harder costs time on every call-out. A professional multi refrigerant manifold set is built to keep pressure measurement, charging and system diagnostics accurate across the refrigerants your business sees most often. For installers and service technicians, it is not just another gauge set in the ute. It is a core commissioning tool.

The right set helps you move confidently from a residential split-system installation to refrigeration maintenance without carrying separate manifolds for every refrigerant. The wrong set can introduce avoidable errors, hose compatibility issues and unnecessary downtime. Here is what to assess before you buy.

What a multi refrigerant manifold set does

A multi-refrigerant manifold set measures low-side and high-side pressure while giving the technician the saturation temperatures and operating information needed to assess a system. Depending on the model, it may support a broad selection of common refrigerants through marked scales, selectable digital refrigerant programmes or a connected app.

That flexibility matters because pressure alone does not tell the full story. To calculate superheat or subcooling properly, pressure has to be matched to the correct refrigerant pressure-temperature relationship. A set configured for R32, R410A, R134a, R404A and other commonly encountered refrigerants reduces the need for conversion charts and limits the chance of reading from the wrong scale under pressure on site.

It does not mean every manifold is suitable for every refrigerant or every task. Always confirm the supported refrigerant list, maximum working pressure, hose rating and connection type before connecting to a system. Newer high-pressure refrigerants and flammable A2L refrigerants require procedures and equipment appropriate to the job.

Digital or analogue: choose for the work you actually do

Both formats still have a place in professional HVAC work. The better choice depends on the volume and type of work your team completes.

Digital manifolds for faster diagnostics

A digital multi refrigerant manifold set is the practical option for technicians who regularly commission variable-speed split systems, diagnose difficult faults or work across varied equipment. Refrigerant selection is typically made on-screen, then saturation temperatures, superheat and subcooling can be displayed directly when temperature clamps are connected.

This shortens the diagnostic process. Rather than moving between gauge readings, a pressure-temperature chart and manual calculations, the technician can focus on whether the system is performing as expected. Digital displays are also easier to read in variable light, provided the unit has a clear screen and sensible controls that can be operated with gloves on.

The trade-off is that electronics need battery management and reasonable care. Look for a protective housing, dependable port seals and controls that do not require repeated menu navigation for routine work. A digital manifold should simplify the job, not add another device to charge and protect.

Analogue manifolds for direct, dependable readings

Analogue manifolds remain a sound choice for technicians who want simple operation, immediate pressure visibility and a tool that is ready whenever it comes out of the tool bag. Quality analogue gauges are particularly useful for routine service work and technicians who prefer reading needle movement while charging or checking operating pressures.

For multi-refrigerant work, gauge faces need to be uncluttered and genuinely legible. Too many overlapping refrigerant scales can slow down a job and increase the risk of selecting the wrong one. If your work is centred on only a few refrigerants, a clearly marked analogue set may be all that is required. If the work changes every day, digital refrigerant selection is often more efficient.

Check pressure rating before refrigerant coverage

A long refrigerant list is useful only when the manifold body, gauges and hoses are rated for the pressures involved. This is especially relevant for R410A and R32 systems, where operating pressures are higher than older R22-style applications.

Check the maximum working pressure and burst rating of the complete set, not only the manifold. Hoses, ball valves, couplers and seals must all suit the intended work. A high-quality manifold body is wasted if hoses are worn, poorly rated or leaking at the fittings.

For day-to-day field work, hoses should be flexible enough to route cleanly around an outdoor unit without kinking, yet durable enough to cope with repeated handling. Colour-coded hoses make service connections faster, while shut-off valves at the hose ends can reduce refrigerant loss when disconnecting. Low-loss fittings are a practical upgrade where every gram of refrigerant and every minute on site matters.

Connections, hoses and field setup matter

The service port connection is easy to overlook until a technician arrives on site with the wrong adaptor. Many traditional systems use 1/4-inch SAE service connections, while R32 equipment commonly uses 5/16-inch fittings. A manifold set suited to modern split-system work should either include appropriate hoses and adaptors or allow them to be added without compromising sealing performance.

Avoid treating adaptors as a permanent workaround for every job. They can be useful, but each additional connection adds another possible leak point and another item to keep clean. Build a setup around the equipment you service most, then keep quality adaptors available for exceptions.

It is also worth considering hose length. Longer hoses improve access where condensers are mounted in awkward locations, but they add internal volume and can make charging by critical weight less precise if the hoses are not properly managed. Shorter hoses are easier to control and evacuate, although they can be restrictive on tightly installed units. There is no single ideal length for every contractor.

Accuracy is only useful when the set is maintained

Even a professional manifold will not provide dependable readings if it is damaged, contaminated or overdue for checking. Gauge accuracy, valve action and sealing condition should be part of regular tool maintenance, particularly for teams using the same set across multiple service calls each day.

Before connecting, inspect hose gaskets, threads, valve stems and the manifold body. Replace flattened seals and damaged hoses before they become a refrigerant loss or a failed pressure test. Keep caps on ports when the set is stored, and avoid leaving hoses open in dusty conditions. Moisture and debris have no place in a system being evacuated and commissioned.

For analogue gauges, confirm needles return to zero when disconnected and investigate any obvious offset. For digital instruments, check battery condition and follow the manufacturer’s calibration guidance. If readings do not agree with known system conditions or another verified instrument, take the set out of service until the cause is clear.

Match the manifold to your wider tool kit

A manifold set works best as part of a disciplined commissioning process. It should complement a quality vacuum pump, micron gauge, electronic scale, temperature clamps and leak detection equipment. Gauges are useful for system diagnostics, but they are not a substitute for confirming evacuation with a dedicated micron gauge.

On installation work, use the manifold only where it supports the required procedure. The goal is not to connect more equipment than necessary. Every connection introduces potential refrigerant loss and contamination risk. On a correctly installed new split system, a clean evacuation setup and accurate charging process often matter more than leaving gauges connected for extended periods.

For fault finding, the picture is broader. Combine manifold readings with indoor and outdoor temperatures, airflow checks, electrical measurements and visual inspection. A pressure reading that appears abnormal may be caused by restricted airflow, an incorrect charge, a metering fault, sensor control behaviour or ambient conditions. A good manifold gives reliable data. Sound diagnosis still relies on the technician interpreting that data in context.

Buying for service work versus installation work

A contractor focused mainly on new residential installations may prioritise a compact, high-pressure-rated set with R32 compatibility, dependable hoses and clear readings. Speed of setup, port access and durability are usually more valuable than an extensive suite of diagnostic features.

A refrigeration mechanic or service business working across supermarkets, cool rooms, vehicles and air conditioning systems may gain more from a digital set with wide refrigerant coverage, temperature inputs and calculated performance values. The higher upfront cost can be justified when it reduces calculation time and helps technicians isolate faults sooner.

For mixed fleets, standardising on one professional platform can make training, replacement hose selection and job procedures simpler. It also means technicians are not borrowing unfamiliar gauges midway through a call-out. AC Direct’s HVAC-focused range is designed around this kind of practical tool selection: choose equipment that supports accurate work now and remains relevant as the refrigerants and systems in your workload change.

A manifold set should earn its place in the tool bag through clear readings, reliable sealing and compatibility with the systems on your schedule. Choose it around the jobs you complete most often, maintain it properly, and it will support cleaner commissioning and faster fault finding long after the first installation.
