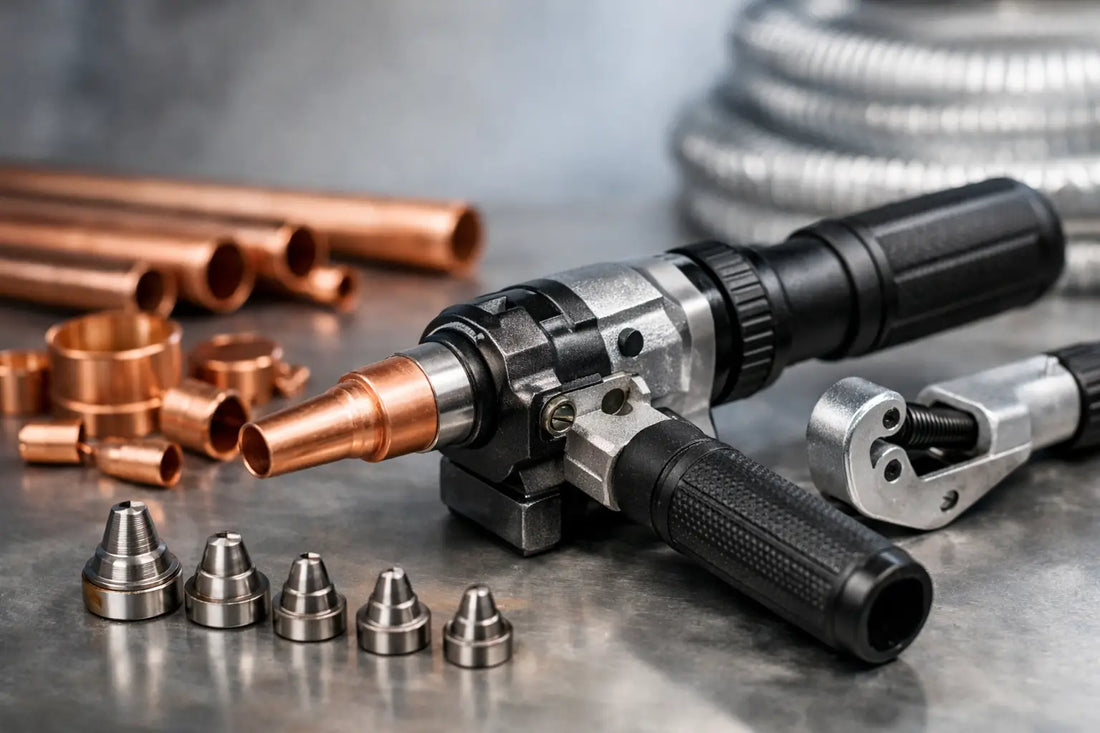

HVAC Copper Tube Expander for Clean Joints

A good HVAC copper tube expander earns its place on the ute because it removes a common weak point in refrigerant pipework: the unnecessary coupling. Expand one correctly prepared tube, insert the matching tube, and you have a clean socket joint ready for brazing. That means fewer fittings to carry, fewer joints to leak-test and a neater result in tight plant rooms, ceiling spaces and outdoor unit connections.

For installers and refrigeration mechanics, the benefit is not just speed. Tube expansion can preserve flow, reduce brazing material use and produce a more professional finish when the tool, tube and technique are matched. The key word is matched. A cheap or poorly chosen expander can split annealed copper, leave an uneven bell, or create a socket with insufficient engagement. Those problems cost far more time than a coupling ever saved.

What an HVAC copper tube expander does

A tube expander forms the end of a copper tube into a larger-diameter socket so another tube of the same nominal size can slip inside it. The expanded section replaces a straight coupling on many refrigeration and air-conditioning line runs. It is different from a flaring tool: a flare creates an angled face for a mechanical flare nut connection, while an expander creates a straight socket for a brazed joint.

Most professional tools use interchangeable heads sized for common ACR tube outside diameters. Manual lever expanders, ratchet styles and hydraulic or cordless units all work on the same principle, but they differ sharply in speed, effort and consistency. For occasional repair work, a quality manual kit can be a sensible choice. For installers making repeated joints across multiple splits or a commercial fit-out, cordless expansion reduces hand strain and helps keep every socket consistent.

The right tool should form a socket deep enough to provide reliable tube engagement without overworking the copper. It also needs to leave the tube round. A distorted opening makes insertion difficult and can create uneven capillary space around the joint, which is not what you want before flowing brazing alloy.

Why expanded joints matter on HVAC work

Every brazed joint is a potential leak point, so reducing fitting count is practical risk control. An expanded joint eliminates the two brazed connections created by a coupling. On a long run with several joins, that can mean less time on the torch, less nitrogen consumption during purging and a simpler pressure-test routine.

There is also a material and access advantage. Couplings take up space and add cost. In congested locations, an expanded tube can give you a cleaner line path with fewer bulky components to position. This is especially useful where pipe insulation, condensate drains, control cable and services all compete for room.

That said, expansion is not automatically the best choice. Use a coupling where tube condition is questionable, where the pipe has been damaged or heavily work-hardened, or where the available straight length will not support a proper expanded section. A fitting is inexpensive compared with revisiting a failed joint after commissioning.

Choosing the right copper tube expander

Start with your normal pipe sizes. A residential installer may primarily need heads for common split-system liquid and suction lines, while refrigeration contractors often need broader coverage. Confirm that the head set is designed for ACR copper tube and that the stated range suits the tube dimensions you actually install.

Head design matters more than it first appears. A well-machined expander head opens the tube evenly, minimising thin spots and producing a round socket. Look for secure head retention, clear size markings and a tool body that is comfortable to operate with gloves on. In field conditions, loose heads and vague size identification slow the job down.

Manual, hydraulic or cordless?

Manual expanders are compact, dependable and easy to keep in a service kit. They are a strong option for lower-volume work, repairs and technicians who value simple mechanical tools. The trade-off is physical effort, particularly on larger tube sizes or when several expansions are required in a day.

Hydraulic and cordless models are built for production. They apply force more consistently, speed up repetitive installation work and reduce fatigue. A cordless unit is particularly useful when you are moving between indoor heads and condensers or working where a power lead is inconvenient. It does add battery management, purchase cost and another powered tool to protect from dust, moisture and job-site knocks.

For a business completing regular installations, consistency is often the deciding factor. A professional-grade cordless expander can pay for itself through faster pipe preparation and fewer remade ends. For a technician carrying a light service load, a durable manual kit may be the smarter buy.

Preparing tube before expansion

The expander cannot correct poor tube preparation. Start with a square cut using a sharp tube cutter. Avoid crushing the pipe by overtightening the cutter wheel. Rotate, tighten gradually and let the cutter do its job.

Deburr the inside edge carefully after cutting. Internal burrs restrict flow and can break loose in the system. External burrs can score the expander head or interfere with a clean socket. Keep swarf out of the tube, particularly on an open line set where contamination control is already a concern.

Check the copper itself before expanding. Refrigeration-grade copper should be clean, round and free of deep scoring. If the tube has been kinked, flattened in a bender, or has a previous flare or coupling close to the end, cut it back to sound material. Trying to salvage a marginal section usually creates more waste.

How to form a reliable expanded socket

Select the head that matches the tube diameter, then seat it fully and squarely in the tube end. Keep the tool aligned with the pipe. Starting off-axis is one of the quickest ways to create an uneven expansion.

Apply expansion gradually. With a manual tool, use controlled pressure rather than forcing the mechanism in one hard movement. With powered equipment, follow the tool’s operating sequence and avoid repeated cycles once the socket has reached the required form. Over-expansion thins the copper and can leave an oversized joint with poor capillary control.

Withdraw the head and inspect the result before you bring in the mating tube. The expanded socket should be round, smooth and free from cracking. The receiving tube should slide in with firm but reasonable resistance. If it rocks noticeably, drops in loosely or only enters at an angle, cut the end off and remake it.

Tube engagement needs to be adequate for a secure brazed joint. The exact depth depends on tube size and the tool’s design, but the practical test is simple: the inserted tube must sit straight, stable and fully supported around its circumference. Do not rely on brazing alloy to fill a badly formed gap.

Brazing after expansion

Treat the expanded joint with the same discipline as any other refrigeration braze. Clean both mating surfaces, assemble them without forcing, and purge with dry nitrogen at a low controlled flow. Nitrogen purging limits internal oxidation, helping protect expansion valves, compressors and other components from scale contamination.

Heat the joint evenly. The expanded outer tube and inserted tube have different thermal mass, so move the flame to bring both sections up to temperature rather than concentrating heat in one spot. Feed alloy only after the joint is hot enough to draw it through by capillary action. If alloy sits on the surface or balls up, stop and correct the heat rather than adding more material.

Allow the joint to cool naturally, then pressure-test the completed system in line with the equipment manufacturer’s requirements and applicable Australian standards. A visually tidy braze is not a leak test. Proper pressure testing, evacuation and commissioning remain non-negotiable.

Common mistakes that waste copper

The most common failure is expanding a tube that has not been reamed. Burrs damage the shape of the opening and leave contamination inside the pipe. The next is choosing the wrong head size, often because markings are worn or the technician is working too quickly. Keep heads organised and verify the tube size before expanding.

Another issue is using expansion on hard-drawn or work-hardened copper without considering its condition. Tube that has been heavily bent or manipulated may crack at the mouth during expansion. Where possible, expand a straight, clean length before making nearby bends. If the tube looks stressed, use a coupling or replace the section.

Finally, do not confuse a fast joint with a rushed joint. Expansion saves time when it is repeatable. Cutting corners on squareness, deburring, nitrogen purging or inspection only transfers the time cost to fault-finding later.

A copper tube expander is a small investment in cleaner pipework and repeatable installation quality. Choose a professional unit suited to your daily tube sizes, keep the heads clean, and inspect every socket before brazing. That discipline gives you the result that matters on every job: pipework you can pressure-test with confidence and leave behind with your name on it.
